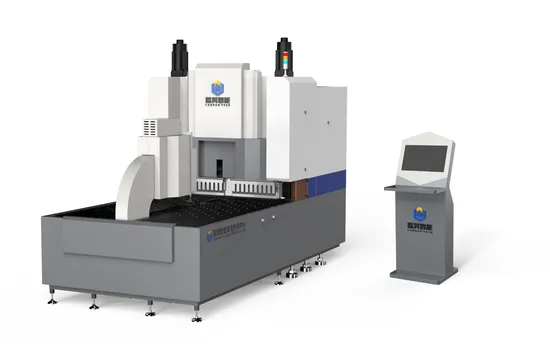

1400mm Thick Panel Bender Series

Product Description

Product Description LHA-PA series intelligent panel bender adopts pressing arm loading method, and the whole machine is designed and produced according to the standard of
high-precision machine tools. It is suitable for mesh, corrugated, hollow and various flat or special-shaped THICKER work pieces. It has more functions such as automatic reposition, oblique reposition, double C-axis rotation, wider range of application, and outstanding performance in terms of stability, reliability, etc. Product Parameters

LHA-1400PA Technical parameters
Feeding structure	Pressing arm
Work table structure	Brush
System minimum accuracy	0.001mm
Max bending speed	0.2 second/time
Max feeding speed	90m/min
Max.bending width	1400mm
Max.Bending size	L 1400mm X W 1400mm
Max. Bending height (The maximum bending height after customization can reach 300mm)	170mm 300mm(customizable)
Min. Bending height	3mm
Min.arc radius	0.5mm
Rated power	380V
Motor power	40KW
Average power	About 1.9KW
Noise	About 50 dB
Machine size	L440cm X W190cm X H290cm
Total weight	About 12 tons
User operating environment	Win7 or above system
Max. Bending thickness	UTS 515N/mm2 304 stainless steel 2.0mm UTS 410N/mm2 cold panel 3.0 mm
Min. Panel thickness	0.35mm
Four side forming min. Inner size	About 160mmx210mm( excluding inverted folded side)
Double side forming min. Inner size	About 160mm
Bending angle	0-180 degree
Axis	15

Certifications
Company Profile
Our Advantages PA-SERIES,also based on PC series, adopts pneumatic upper pressing tooling ,which could ensure better outcome for thicker metal sheet no more than 3mm.We have applied for more than 200 core technology patents, of which more than 90 have been authorized.
We have an independent R&D team with more than 160 personnel. This team is divided into:
information management center, mainly responsible for cloud services and data processing; software research and development department, mainly responsible for optimizing and upgrading control system to better co-operate with our machine; mechanical design department, main work is to optimize machine design and provide customized solutions based on different customer demand; After Sales Service
