2025 New Digital Flatbed Cutting Plotter Auto Feedergrey Cardboardcutting Machine Paper and Corrugated Cutting Table

Product Description

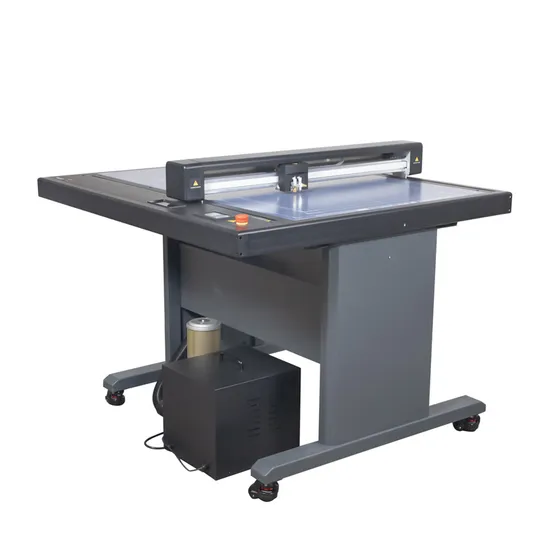

SASD Product Description The Flatbed Cutter Plotter
is an advanced CNC cutting machine designed to streamline cutting processes, save labor costs, and enhance production efficiency. This machine is perfect for businesses that require high-precision cutting for a wide range of soft and medium rigidity materials. Equipped with cutting-edge features such as advanced tool knives, a powerful servo motor, and a vacuum system, the JK-1312 provides unmatched performance.
ITEM JK-1312 JK-1612 JK-1325

Non-contour cutting area	1300x1200mm	1520x1200mm	1300x2500mm
Contour cutting area	1240x1180mm	1490x1180mm	1270x2450mm
Max. media thickness	1.5mm	1.5mm	2.0mm
Applicable media	Soft and medium rigidity media	Soft and medium rigidity media	Soft and medium rigidity media
Method to fix media	Vacuum table (2.2kw vacuum pump with muffler)	Vacuum table (2.2kw vacuum pump with muffler)	Vacuum table (2.2kw vacuum pump with muffler)
Max. cutting speed	600mm/s	600mm/s	600mm/s
Max. cutting force	600G/5.8N	600G/5.8N	600G/5.8N
Cutting force setup	Adjustable in every 1G	Adjustable in every 1G	Adjustable in every 1G
Cutter blade diameter	60mm	60mm	60mm
Dotted lines cutting	Included	Included	Included
Drive	AC Servo	AC Servo	AC Servo
Mechanical resolution	0.0125mm	0.0125mm	0.0125mm
Compatible OS	Win 10/8/7/XP	Win 10/8/7/XP	Win 10/8/7
Memory buffer	2MB	2MB	2MB
Software	Windows driver, Signworkpro, CADtoplotpro	Windows driver, Signworkpro, CADtoplotpro	Windows driver, Signworkpro
LCD language	English/Chinese	English/Chinese	English/Chinese
File format	HP-GL, PLT, U5B, RS-232	HP-GL, PLT, U5B, RS-232	HP-GL, PLT, U5B, RS-232
Port in standard	CCD Camera	CCD Camera	CCD Camera
Reg marks detection	Yes	Yes	Yes
Power input	220V/50-60Hz	220V/50-60Hz	220V/50-60Hz
Power consumption	Cutter: 1.5kw; Vacuum pump: 2.2kw	Cutter: 1.5kw; Vacuum pump: 2.2kw	Cutter: 1.5kw; Vacuum pump: 2.2kw
Working tools	1 pcs blade holder, 1 pcs pen holder, 10 pcs cutting blades included	1 pcs blade holder, 1 pcs pen holder, 10 pcs cutting blades included	1 pcs blade holder, 1 pcs pen holder, 10 pcs cutting blades included
Media bracket	Yes	Yes	Yes
Machine Dimension (L-W)	1700x1800mm	2100x1800mm	1700x2800mm
Packing size (L-W-H)	920x1850x1220mm	2150x1920x1220mm	1920x3200x1220mm
Weight	260kg	340kg	680kg

Key Product Features: Advanced Tool Knife: The Gunner Series Flatbed Knife features a sports car structure, driven by a silent coil motor, ensuring fast, flexible, and long-lasting operation. This advanced tool knife operates continuously without overheating, making it perfect for large-scale cutting tasks. Servo Motor/Closed-Loop Control: The servo motor provides smooth acceleration, high torque, and precise cutting. In case of an overload, cutting/drawing will automatically stop, providing an important safety feature that protects the tool holder if the medium becomes blocked. This feature enhances both safety and durability. Automatic Feeding System Conveyor: The conveyor system automatically feeds materials for long-distance seamless cutting. Coupled with CCD cameras, it ensures that nesting and contour cutting are completed quickly and with high precision, reducing human intervention. Vacuum System: The powerful vacuum system presses materials tightly onto the cutting table, ensuring accurate and fast cutting. This ensures that the tool holder works efficiently, even with thicker or more rigid materials. Intelligent Controller: The GR series flat cutting machine controller uses advanced algorithms, making it easy to upgrade for future needs. It's designed to handle different applications and is suitable for a wide range of industries. Product Parameters
Application fields of machine Widely used in clothing, shoes, bags and handbags, laser die drawing, lighting, advertising gifts, self-adhesive, color box packaging, electronics and other industries of drawing and cutting.
