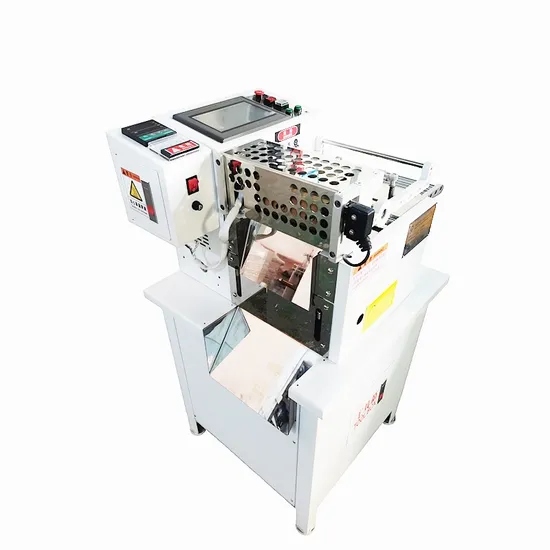

High Qualiy Nylon Zipper Cutting Machine
| US$2,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HX-160
Condition
New
Certification
CE
Automation
Automatic
Suitable for
Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Model
Hx-160
Voltage
220V
Power
375W
N. W.
83kg
G. W.
133kg
Cutting Length
0.1~9999.9mm
Cutting Width
1~160mm
Measurement
550X550X1000mm
Manufacture Experience
10years
Export Experience
5years
Type
Zipper Cutting Machine
Application
Textiles, Medical, Machinery & Hardware, Apparel
Type for Cutting Machine
Zipper Cutting Machine
Type for Fold-Bending Machine
Zipper Cutting Machine
Type for Pipe and Tube Bending Machine
Zipper Cutting Machine
Transport Package
Plywood Case
Specification
160mm
Trademark
Hexin
Origin
Kunsha, China
HS Code
84411000
Production Capacity
1000PCS/Month
Packaging & Delivery
Package Size
70.00cm * 70.00cm * 120.00cm
Package Gross Weight
140.000kg
Product Description
high qualiy nylon zipper cutting machineTechnical Parameters:
| Model | HX-160 |
| Voltage | 220V(convertible) |
| Power | 375W |
| N.W. | 83kg |
| G.W. | 133kg |
| Cutting Length | 0.1~9999.9mm |
| Cutting precision | ±0.1mm |
| Cutting speed | 100-120cut/min(take 50 mm for example) |
| Cutting Width | 1~160mm |
| Measurement | 550x550x1000mm |
Features: 1. Computer controlled PLC system, full automatic .
2. Owing to the servo motor the cutting length is accurate,high precision can reach 0.1mm.
3.Automatic to preset length, quantity & speed on touch screen, it is not erased .even if
power off & on.
4.Cutting length and cutting speed tunable
5.the cutting speed is 100~120 cut per minute. (take 50mm long for example).
6.Cut up to 160mm wide material or multiple rolls.
7.cutting is neat due to using a cold cutter like scissors and blades are durable .
8.Full English LCD display,easy operating.and you can check the operation manual
brochure, we will send together with the machine.
9.cutter safety guard included,no danger risk.
10.adjustable pressure on feed roller for thin or smooth materials.
11.this plastic cutter machine is including one unwinding material rack.
Application:
Ideal for cutting heavy production to cut non adhesive material,such as various
tube,tape,label,Velcro,conductive foam,fabric,metal foil,PVC,PET,OPP,PP,CPP,LDPE,
PVC sleeve,craft paper,insulation paper,trademark,PVC pipe,rubber hose,belt loop,
leather belt,plastic strip,plastic zipper etc.
After-service:
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory
