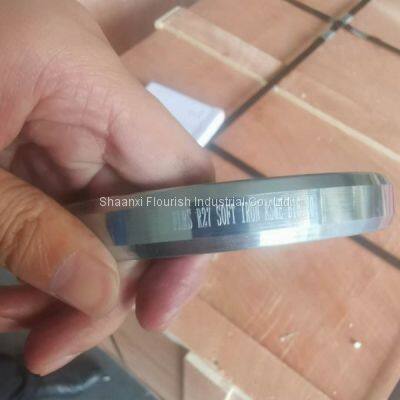

Soft Iron R105 Octagonal Ring Spiral Wound Gasket

Soft Iron R105 Octagonal Ring Spiral Wound Gasket

Product Details

Product Details

Product Description

Product Description
Standard:Material:Size:Hardness:Shape:Pressure:High Light:
ASME B16.20Soft Iron
From R11-R105Less Than 90BHN
Octogonal RingCLASS150-CLASS2500
Octagonal Spiral Wound Gasket, R105 Spiral Wound Gasket, Soft Iron Spiral Wound Gasket

Ring Joint Gasket
Metal ring gasket is used in pipe flanges, valves, pressure vessels, submarine, high-speed joint surface, high temperature and high pressure valve cover and other pressure joint.
Material of Ring Joint Gasket ,Designation,Temperature
Material of Ring Joint Gasket
Max Hardness
Designation
Max Temperature
Name
Standard
HBS
HRB
Iron ª
GB/T 9971
90
56
D
540
10
GB/T 699
120
68
S
540
1Cr5Mo
JB 4726
130
72
F5
650
0Cr13
JB 4728 GB/T 1220
170
86
410S
650
0Cr18Ni9

160
83
304
700ь
00Cr19Ni10

150
80
304L
450
0CR17Ni12Mo2

160
83
316
700ь
00Cr17Ni14Mo2

150
80
316L
450
0Cr18Ni10Ti

160
83
321
700ь
0Cr18Ni11Nb

160
83
347
700ь
When working temperature above 540℃, Please contact with manufacturer

Main Features
1)There are a variety of materials and patterns to suit different design and operation requirements,
2)The new flat bottomed grooved flanges are interchangeable and can be supplied within the shortest possible time.
3)Note: the quality of the metal rings should be lower than the flange 15~20 HB, and the old products are not recommended to be reused.
