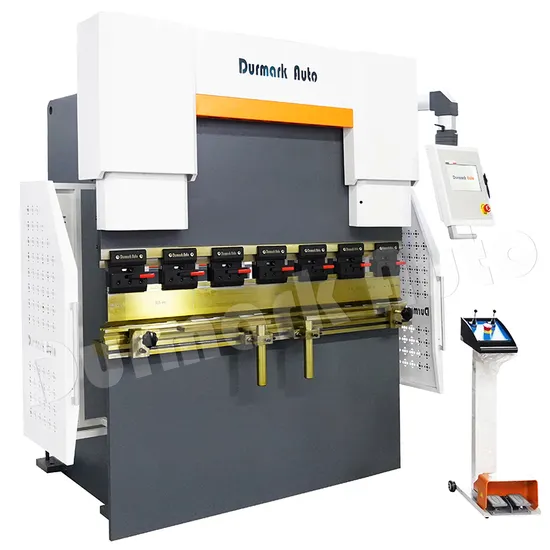

China Hot Sale 160 Tons Hydraulic Press Brake Machine Price CNC Bending Machine for Sheet

Product Description

Main Features 1. The frame is steel structure, left and right vertical plate, table and pressure plate welded into a unitary structure, after welding to eliminate internal stress by tempering, exceptional rigidity, high stability.
2. Important parts of the frame, sliders, etc. are used ANSYS finite element analysis software to ensure machine reliability.
3. Hydraulic drive, cylinder on both end of machine, disposed on the slider to drive it work directly.
4. Torsion axis synchronization for slide synchronous mechanism.
5. Adopt a mechanical stopper mechanism, stable and reliable.
6. Back Gauge size and slide stroke controlled by CNC system, back gauge with high precision ball screw, stable operation and precise positioning.
7. The CNC system adopts frequency conversion control technology, with multi-step
programming function, simple and easy to operate.
8. Inclined wedge deflection on the compensation mechanism, in order to guarantee access to high bending accuracy.
9. Safety barrier device all around the machinery, electrical cabinets equipped with Open door cut-off function, emergency stop button around front and back, protective cover foot switch to ensure safe working.

Model:	Unit	WC67K
		160T/4000
NC Control Axis		Y-X-axis
Bending force	Ton	160T
Bending length	mm	4000
Distance between columns	mm	3200
Beam Stroke	mm	160
Daylight	mm	400
Throat Depth	mm	320
Table width	mm	250
Working table height	mm	800
WORKING SPEED:
Fast Speed	mm/sec	0~60
Work Speed	mm/sec	0~10
Return Speed	mm/sec	60
BACKGAUGE:
Max Speed X-axis	mm/sec	120
Max Travel X- Axis	mm	500
Max Speed Y-axis	mm/sec	80
Max Travel Y- Axis	mm	160
Finger Block CAPACITY:	Pcs	3
Hydraulic pressure	Bar	275
Motor Power	KW	11
Oil Tank Capacity	KG	200(46# hydraulic oil)
Overall dimensions	mm	4300x1600x2500
weight	KG	10500
Power supply		AC 220V~400V,3ph,50/60HZ
CONFIGURATION:
NC System		E21/E30 NC System form ESTUN
Electrical components		Scneide from French Brand
Main Motor		Siemens from Germany Brand
Pump		SUNNY from U S A
Hydraulic		Rexroth hydraulic system from Germany
Tubing connector		Germany EMB Brand
Ball Screw		HIWIN from TaiWan Brand
Liner guide		HIWIN from TaiWan Brand
