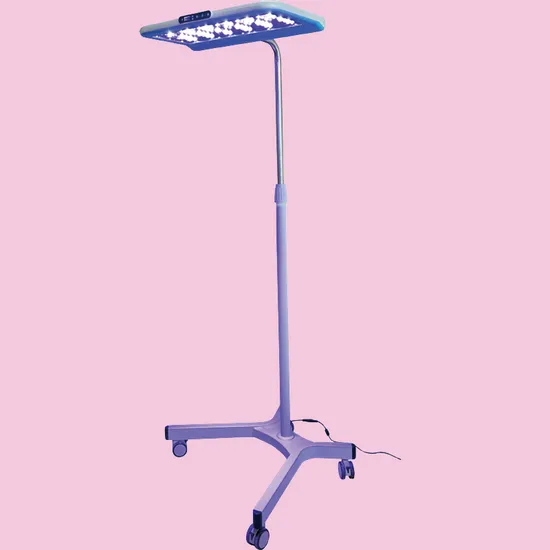

Easywell Ks-IP48 Mobile LED Blue Light Neonatal Infant Jaundice Phototherapy Light

Easywell Ks-IP48 Mobile LED Blue Light Neonatal Infant Jaundice Phototherapy Light

US$400.00
20-49 Pieces
US$350.00
50-99 Pieces
US$300.00
100+ Pieces

Basic Info.

Model NO.
KS-IP48
Certification
CE, FDA, ISO13485, LVD, EMC, FSC
LCD Display
LED Display
Group
Infant
Power Supply
AC110V~240V60/50Hz
Light Source
Blue LED/ White LED
Input Power
80va
Irridiance Control
5 Levels
Radiant Wave Length
400nm~500nm
Peak Wavelength
452nm-455nm
Phototherapy Source Adjust Range
1140~1690mm
Phototherapy Source Rotation Angle Range
0~360°
LED Lamp Lifetime
50000 Hours
LED Lamp Quantity
48PCS (24 Blue,24 White)
Lamphead
540X300X28mm
Count Down Time Range
10~60mins
Uniformity of Ebi
Great Than 0.4
Effective Area
300X500mm
Emergency Power Supply
Lithium Battery 7000mAh Can Be Option
Transport Package
Standard Export Carton
Origin
China
HS Code
8539391000
Production Capacity
1000per Month

Product Description

Easywell KS-IP48 Mobile LED Blue Light Neonatal Infant Jaundice Phototherapy Light
Our Advantages 1.Light Dimming Facility for the irridiance instensity
2.combinated with white LED light for Observation
3.Digital timer for therapy time control
4.It can also be used with many other medical devices such as Radiant warmer, Intensive care incubators. It is compatible with most of the baby bassinets.
Product Parameters
Technical Data of KS-IP48
Electrical specification Power supply AC110V~240V 60/50HZ
Input power 80 VA
Emergency power supply Lithium battery 7000mAh (option)
Performance Specification Light source Blue LED/ White LED
LED lamp lifetime 50000 hours
LED lamp quantity 48 PCS (24 blue/24 white)
Count down time range 10-60 mins
Irradiance Contronl 5 levels
Radiant Wavelength 400nm-500nm
Peak of Wavelength 452nm-455nm
Infrared radiation in effective area ≤10mW/cm2 (760nm<λ≤1400nm)
Ultraviolet radiation in effective area ≤1.0×10-5mW/cm2 (200nm<λ≤400nm)
Irradiance Performance (Irradiance distance=35CM) Effective area 300x500mm
Uniformity of Ebi >0.4
Spectral Irradiance intensity
μw/(cm2▪nm)		 Level 1 Level 2 Level 3 Level 4 Level 5
40 51 58 73 83
Ebi max (maximum total irradiance for bilirubin) ±25% (μW/cm2) Level 1 Level 2 Level 3 Level 4 Level 5
2700 3300 3700 4600 5100
Irradiance Performance (Irradiance distance=50CM) Effective area 300x500mm
Uniformity of Ebi >0.4
Spectral Irradiance intensity
μw/(cm2▪nm)		 Level 1 Level 2 Level 3 Level 4 Level 5
29 35 38 52 60
Ebi max (maximum total irradiance for bilirubin) ±25% (μW/cm2) Level 1 Level 2 Level 3 Level 4 Level 5
1800 2200 2400 3200 3700
Physical specification Lamphead 540x300x28mm
Phototherapy source adjust range 1140~1690mm
Phototherapy source rotation angle range 0~360°
Mounted type Mobile(opion:different base,vertical pole), Rail Clamp, Table Clamp, Wall mounted, Ceiling
Working condition of circumstance Temperature range 10ºC~40ºC
Humidity range 10%~85%RH
Atmospheric pressure 700hPa~1060hPa
Transport and storage condition Temperature range -10ºC~+55ºC
Humidity range ≤95%
Atmospheric pressure 500hPa~1060hPa

Detailed Photos
Lamp head
New upgrade control system:
Use with Infant Incubator Producing line
Brochure
Certifications
Exhibition
