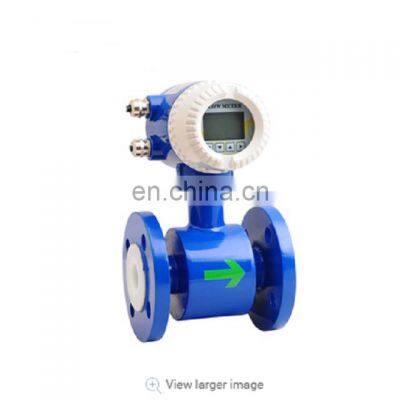

Taijia TEM82E electromagnetic mag flow meter liquid water inline magnetic flow meter electromagnetic flowmeter

Product Description

Product Description
TEM82E electromagnetic mag flow meter liquid water inline flow meter Product name:Electromagnetic flow meterModel Number:TEM82ESize:DN6~DN2800Medium:Conductive liquid, slurryMedium Temperature:E grade∠60°C.H grade∠180°CConductivity:≥5 u S/cmAccuracy:±0.25% . ±0.5%Repeatability:±0.1% . ±0.17%Rated Pressure:0.6, 1.0, 1.6, 2.5, 4.0, 6.4 MPa (or specified by customer )Display :Instantaneous flowrate, total flow, velocity, flowrate percentage with back lightSignal Output:4-20mA current output, pulse output, pulse output, RS-485, Hart.Power Supply:AC:85V~265V, DC:18V~38VConverter Type:Integral, remoteProtection Grade:IP67/IP68Explosion Proof:Ex deibmb IIC T3~6Velocity:0.05~12m/s ( 0.1~15m/s as required )Liner:PU(DN25~DN500)/ F4(PTFE) (DN25~DN1600)/F46(FEP) (DN10~DN200)/ PFA (DN10~30)Flowing Direction:Forward, ReverseElectrode Material:316L, Pt, Ta, Ti, HB, HC, WCElectrode Number:3~6 pcsFlange Material:SS/CSAlarm (normal open):Empty, excitation, upper/lower limitAmbient:Temperature: -30~+60°C, Humidity: <90%Protocal:RS-485/ Hart Lining Material General CharacteristicsPFAHighly chemical-resistant Excellent high temperature capabilitiesPTFEHighly chemical-resistant Excellent high temperature CapabilitiesRubberAbrasive resistanceWide applications Electrode Material General Characteristics316L Stainless SteelGood corrosion resistanceGood abrasion resistanceNot recommended for sulfuric or hydrochloric acidsHastelloyBetter corrosion resistanceHigh strengthGood in slurry applicationsEffective in oxidizing fluidsTantalumBetter chemical resistanceNot recommended for fluosilic acid, hydrofluoric acid, or sodium hydroxideTitaniumBetter chemical resistanceBetter abrasion resistanceGood for sea water applicationsNot recommended for hydrofluoric or sulfuric acid Company InformationDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.
