Mechanical Seal TM3/M3a

Product Description

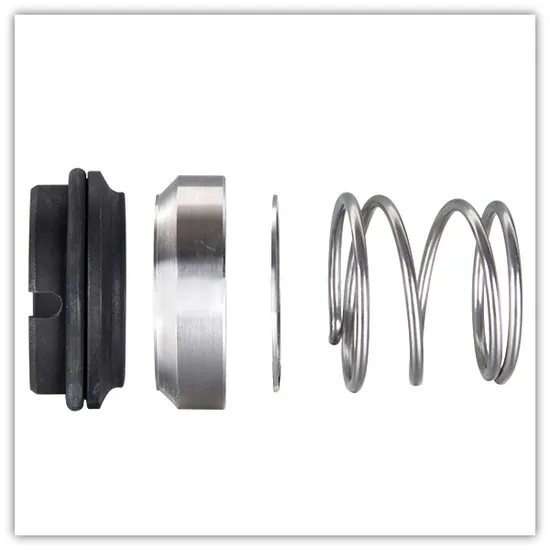

Mechanical Seal TM3/M3A
Replacement to M3N seal
Operational Conditions:
Temperature: -20ºC to +180ºC
Pressure: ≤1.0MPa
Speed: ≤15m/s
Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, Ceramic, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304,SUS316
Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids
Stationary Seat:
Standard: G9
Alternative: G6, G4, G13

Size/	d	D3	D2	D1	d1	L1	L11	L2	L3	M
Metric
10	10	19	17	21	3	15.5	15.5	10	17.5
12	12	21	19	23	3	16	15.5	10	17.5
14	14	23	21	25	3	16.5	15.5	10	17.5
16	16	26	23	27	3	18	17.5	10	17.5
18	18	29	27	33	3	19.5	18.5	11.5	19.5
20	20	31	29	35	3	22	20	11.5	19.5
22	22	33	31	37	3	21.5	21.5	11.5	19.5
24	24	35	33	39	3	23.5	23	11.5	19.5
25	25	36	34	40	3	26.5	24.5	11.5	19.5
28	28	40	37	43	3	26.5	24.5	11.5	19.5
30	30	43	39	45	3	26.5	24.5	11.5	19.5
32	32	46	42	48	3	28.5	28	11.5	19.5
33	33	47	42	48	3	28.5		11.5	19.5
35	35	49	44	50	3	28.5	28	11.5	19.5
38	38	53	49	56	4	33.5	31	14	22
40	40	56	51	58	4	36	34	14	22
43	43	59	54	61	4	38.5		14	22
45	45	61	56	63	4	39.5	36.5	14	22
48	48	64	59	66	4	46	42	14	22
50	50	66	62	70	4	45	43	15	23
53	53	69	65	73	4	47		15	23
55	55	71	67	75	4	49	47	15	23
58	58	76	70	78	4	55	50	15	23
60	60	78	72	80	4	55	51	15	23
63	63	83	75	83	4	55		15	23
65	65	84	77	85	4	55	52	15	23
68	68	88	81	90	4	55	53	18	26
70	70	90	83	92	4	57	54	18	26
75	75	98	88	97	4	62	55	18	26
80	80	100	95	105	4	61.8	58	18.2	26.2
