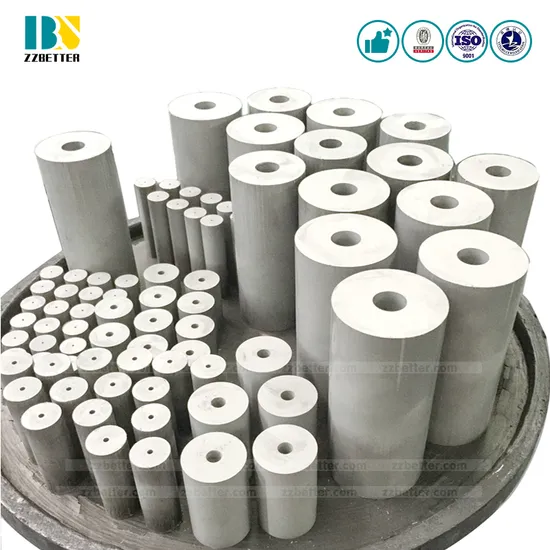

G5 G4 G55 Tungsten Carbide Heading Die Nibs Cemented Carbide Forging Die Carbide Die
| US$45.00-70.00 | 5 kg (MOQ) |
Basic Info.
Model NO.
Tungsten carbide heading die nibs
Material
Tungsten Carbide
Processing Method
Punching and Shearing Mould
Technics
Tungsten Carbide Cold Heading Dies
Process Combination
Composite Mould
Manufacturing Technology
Automation Technology
Driving Motor Type
Hybrid
Mold Cavity Technology
CNC Milling
Milling Speed
Normal Speed
Parts Detection Method
Measurement of Three Axis NC
After-sales Service
24h Online Service
Product Name
G5 G4 G55 Tungsten Carbide Heading Die Nibs Cement
Other Name
Tungsten Carbide Forging Dies
Key Words
Carbide Dies, Carbide Mold
Applciation 1
to Be Used as Wear Parts
Applciation 2
to Be Used as Mold to Make Nails
Field Can Be Used 1
Fastener Industry
Field Can Be Used 2
Auto Industry
Field Can Be Used 3
Where High Enduribity Requried
Transport Package
in Carton
Specification
customized
Trademark
UBT
Origin
China
Production Capacity
40tons/Month
Product Description
G5 G4 G55 Tungsten Carbide Heading Die Nibs cemented carbide forging die carbide die
Tungsten carbide hot forging dies
According to its name we can know that the tungsten carbide dies are used in high-temperature condition. One typical factory that use tungsten carbide dies in very high temperature is glassworking wheel manufacturers. The tungsten carbide hot forging dies are forging the steel part in a temperature of 700 centigrade. Because of it's high temperature applying condition, the tungsten carbide grade must keep high hardness even in hot condition. They commonly use carbide grades are with 12%Co, 15%Co, 20%Co.
Commonly Grades used for tungsten carbide heading dies
| Carbide punching and impacting dies | |||||||
| Grade | Performance | Performance&application recommended | |||||
| Density | Hardness | Bend Strength | |||||
| G/Cm3 | HRA | N/mm2 | |||||
| YG11 | 14.4 | 88.5 | 2600 | Forming or stamping dies for metal powders and nonmental powders. | |||
| YG15 | 14 | 87.5 | 2800 | For fabricating drawing dies of steel tubes and rods under high | |||
| compressibility ratio;punching,stamping,forging tools under large stress. | |||||||
| YG20 | 13.5 | 85.5 | 3200 | For fabricating of stamping dies for watch parts, spring plates of musical | |||
| instruments, battery jars, small-sized steel balls, screws, screw caps. | |||||||
| YG16C | 13.9 | 85.5 | 2900 | Impact resistance, hot&forging dies etc. | |||
| YG18C | 13.7 | 84.5 | 3100 | Impact resistance forging dies,hot-press forging dies, and rollers. | |||
| YG20C | 13.5 | 83.5 | 3300 | Dies for wear-resistant or impact-resistant application. | |||
| YG22C | 13.3 | 83 | 3500 | Nut forming dies and high impact resistance forging dies. | |||
| YG25C | 13.1 | 82.5 | 3600 | Stainless bolt header dies and rollers. | |||
The advantages of ZZbetter tungsten carbide heading dies
1. Many carbide grades available
2. Numerous sizes available
3. Normal and abnormal shapes available
4. High performance for hot forging and cold heading
5. Maintain good shape in high bending strength
6. Can offer precision grinding service
7. Accept custom design
8. Provide professional suggestions
9. Free sample can be provided
10. Strict quality controlled and short production time
Welcome to contact us for more details!
