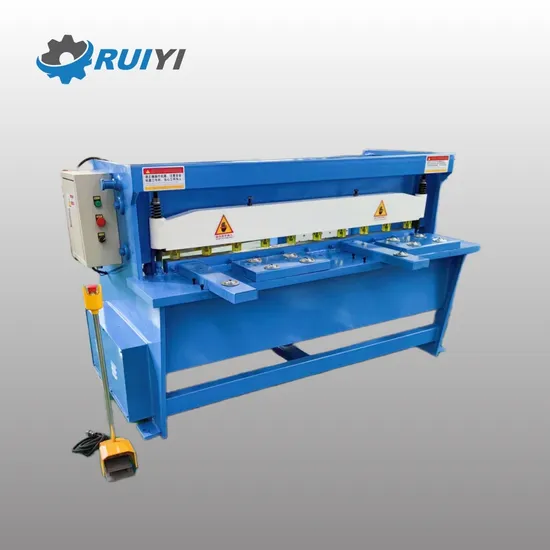

Stainless Galvanized Steel Metal Sheet Plate Electric Electrical CNC Cutting Shearing Machine

Product Description

Product Description
1. the whole machine body uses the integrally weld structure, ensuring the high strength and good rigidity of the machine.
2. Our electric sheet metal cutting machine adopts guillotine upper transmission, and fitted with the brake device.
3. the blade of the machine uses 6Cr2Si material, ensuring the good performance and long performance life.
4. the structure of the machine is simple, easy operation and low consumption.
Product Parameters

model	cutting thickness(mm)	cutting length(mm)	cutting angle	travel times(m/min)	backgauge range(mm)	power(kw)	dimension(mm)
Q11-3X1000	3	1000	2°14'	33	400	4.5	1600x1100x1200
Q11-3X1300	3	1300	2°14'	33	500	4.5	1900x1100x1200
Q11-3X1600	3	1600	2°14'	33	500	4.5	2200x1100x1200
Q11-3X2000	3	2000	2°14'	33	500	5.5	2800x1100x1200
Q11-4X1300	4	1300	2°14'	33	500	5.5	1900x1100x1200
Q11-4X1600	4	1600	2°14'	33	500	5.5	2200x1100x1200
Q11-2X2500	2	2500	2°14'	33	500	5.5	3300x1100x1200

Detailed Photos
Visit And Training
Packaging & Shipping
Company Profile
FAQ
1. Q: Are you a manufacturer or trading company ?
A: We are a manufacturer.
2.Q:How about the quality of your machines?
A: Our company is a famous brand in china,through our 19 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.
3. Q:What can you provide for after-sales service?
A: 24 hours' online service-- technical support by email or calling
Training how to install and use the machine.
Respect your feedback after receiving the goods.
Provide technical exchanging.
Provide the VIDEO with Install and debug for small and medium size machines if needed.
Oversea install and debug for CNC and other large / heavy and precision equipment.
Engineers available to service machinery overseas.
4. Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
