Loongyi Wet Rice Chili Cacao Beans Tea Casava Onion Cereal Kava Grinding Machine

Product Description

Product Description
WFJ Series Air Classifier Mill
Product Introduction:Air Classifier Mill, its another name is Ultra Fine Powder Pulverizer, with a winnowing, no screen,
a variety of properties and uniform particle size, the production process is continuous.
Crushing operations in the host machine is not heating up, can crush all kinds of heat sensitive materials.
The overall performance has reached international advanced level, it is widely used in pharmaceutical,
chemical, food, Medicine, Health care...etc. Food, such as, corn, rice, chili, pepper, oil and wheat, soybean,
garlic, star anise, cinnamon, dehydrated vegetables, hawthorn, ginger, garlic, sugar, sweeteners. grains,
dried small shrimps, pumpkin powder, spices, seaweed, and other industrial materials crushed.

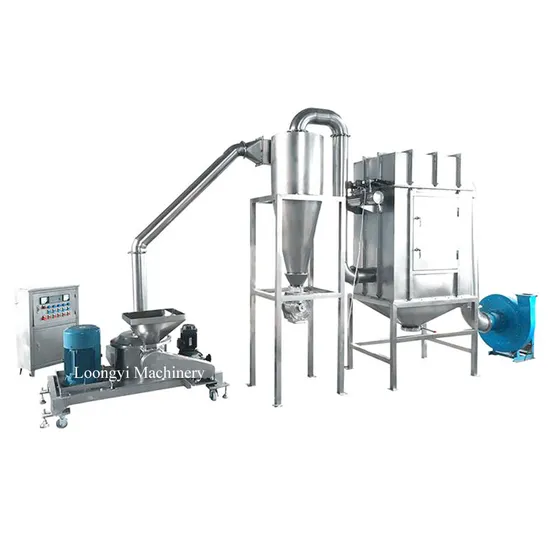

Working Principle:This mill is composed of grinding host, cyclone separator, pulse dust collector, blower, electric control box,
frame and pipes.
After materials are sent to the milling chamber by screw, it will be sheared and crushed by the blade of
high speed rotation. The powders will pass through the guide ring and enter the classifying chamber.
Under the action of aerodynamic and centrifugal force, powders larger than the graded particle size
will be thrown back to the milling chamber for further crushing. Powders smaller than the critical diameter
will enter the cyclone separator and a small part of the super fine dust will enter the pulse dust collector.
Product Parameters
Technical Data:

Detailed Photos
Product Pictures:
Two types blades:
Company Profile
With more than 20 years of manufacturing experience, Jiangyin Loongyi Machinery Co.,ltd specialized in manufacturing
powder grinding machine, mixing machine, sifting machine, granulator machine, packing machine, drying machine,
conveying machine, slicing machine, cleaning machine and so on, which are widely used in foodstuff, chemical and other
industries,etc.

Since its foundation, Loongyi has always adhered with the principle of quality firstly and technology is life. The company
owns more than 100 employees, about 1000m2 of office space, cover about 9000m2 of manufacturing space.
With customer concentric idea as base, it takes every detail seriously in the process of production to assure high
performance and quality of each part and equipment as well as the stable operation in more than 80 countries
around the world. Our products have been exported to such countries and regions as USA,Canada, Europe, Japan,
Australia,Africa,South Asia,middle Asia. We also welcome OEM and ODM models. Our products are approved by CE and ISO.

Loongyi Machinery locates in Wuxi city, Jiangsu Province, China. It takes 30-40 minutes from Loongyi Machinery to Wuxi
railway station or Wuxi airport. And it takes 20 minutes from Wuxi station to Shanghai railway station or Shanghai airport
by high-speed railway, so transportation is very convenient.

Over these years, our company has made elaborate design and improvement,on the basis of absorbing features and
advantages of similar products both at home and abroad.
The products have won good reputation and praises among all customers, from at home and abroad,too.

We specialize in providing powder solutions.
From cleaning, slicing, drying of raw materials, to crushing, screening, mixing, and finally packaging.
We have a lot of successful powder project cases, such as spice powder line, cocoa powder line, sugar
powder line, seaweed powder line, besan flour line, chemical powder line and so on.
We have a professional technical team with over 10 years of experience.
Our engineers can design the overall system solution scheme according to your requirements.
FAQ
To send you a detailed quotation of a suitable machine, could you please tell us:
Q1: What materials do you want to grind?
(Like chili, sugar, herbs...etc)

Q2: What's the size of your raw material?
(Such as 10 mm,15 mm...etc)

Q3: What capacity of the machine you need?
(Like 50 kg/hr, 300 kg/hr,500 kg/hr..etc)

Q4: What's the finished powder fineness you want to get?
(mesh, mm or micron)

Q5: What power supply do you use in your factory?-V,-Hz, 3 phase or single phase?
(Like 220 V , 50 Hz , single or 380 V, 60 Hz , 3 phase...etc)
