E Glass Rfp Pultrusion Glass Fiber/Fiberglass Direct Roving

Product Description

Product DescriptionProduct Description

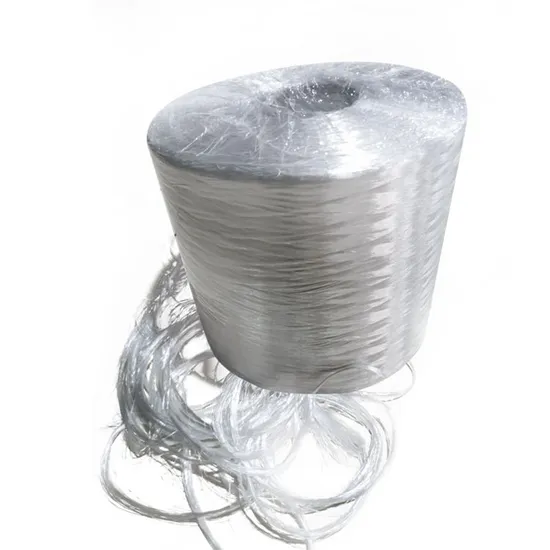

386T Direct Roving is coated with a silane-based sizing compatible with unsaturated polyester, vinyl ester and epoxy resins and designed for filament winding, pultrusion and weaving applications.
386T is suitable for use in pipes, pressure vessels, gratings, profiles, boats, and chemical storage tanks.
Product Features
Good process performance and low fuzz
Multi-resin compatibility
Fast and complete wet-out
Good mechanical properties of parts
Excellent chemical corrosion resistance Instructions
1.The product is best used within 12 months after production, and should be kept in the original package before use.
2.When using the product, please control the tension properly and ensure the tension uniformity.
3.The temperature and humidity of the product should be conditioned to be close or equal to the ambient temperature and humidity before use, and the ambient temperature and humidity should be properly controlled during the use.
4.Care should be taken when using the product to prevent it from being scratched or damaged.
Storage
Unless otherwise specified, the fiberglass products should be stored in a dry,cool and moisture proof area. The best temperature and humidity should be maintained at - 10ºC ~35ºC and ≤80% respectively. To ensure safety and avoid damage to the product, the pallets should be stacked not more than three layers high. When the pallets are stacked in two or three layers, special care should be taken to correctly and smoothly move the upper pallet. Workmanship Process
Product Parameters

Specification
Glass type	E6
Sizing type	Silane
Typical filament diameter (um)	13	16	17	21	24	31
Typical linear density (tex)	300	200 400	600 735 1200	2000	2400 4800	9600
Example	E6DR17- 1200-386T

Technical Parameters
ltem	Linear density variation	Moisture content	Sizing content	Breakage strength
Unit	%	%	%	N/tex
Test menthod	lso 1889	Iso 3344	lSO 1887	lSO 3341
Standard range	±5	≤0.10	0.60±0.10	≥0.40(s2400 tex) ≥0.35(2401~4800 tex) z0.3o( >4800 tex)

Mechanical Properties
Mechanical properties	Unit	Value	Resin	lest menthod
rensile strength	MPa	2660 / 2580	uP/EP	ASTM D2343
lensile modulus	GPa	80.22/80.12	uP/EP	ASTM D2343
Shear strength	MPa	68	EP	ASTM D2344
Strength retention(72 hr boiling)	%	> 94	EP

Packaging
Item	unit	Standard
Typical packaging method	/	Packed on pallets.
Typical package height	mm (in)	260 (10.2)
Package inner diameter	mm (in)	160 (6.3)
Typical package outer diameter	mm (in)	280 (11.0)		310 (12.2)
Typical package weight	kg (lb)	17 (37.5)		23 (50. 7)
Number of layers	(layer)	3	4	3	4
Number of packages per layer	(pcs)	16		12
Number of packages per pallet	(pcs)	48	64	36	48
Net weight per pallet	kg (lb)	816 (1799.0)	1088 (2398.6)	828 (1825.4)	1104 (2433.9)
Pallet length	mm (in)	1140 (44.9)		1270 (50.0)
Pallet width	mm (in)	1140 (44.9)		960 (37.8)
Pallet height	mm (in)	940 (37.0)	1200 (47.2)	940 (37.0)	1200 (47.2)
