Nm360 Nm400 M450 Nm500 Nm550 Nm600 Nr360 Nr400 Plate 400 500 450 Steel Iron Plate Slab 50-2500mm Width Wear Resistant Carbon Hot Rolled Steel Steel Plate

Product Description

NM360 NM400 M450 NM500 NM550 NM600 NR360 NR400 Plate 400 500 450 Steel Iron Plate Slab 50-2500mm Width Wear Resistant Carbon Hot Rolled Steel Steel Plate
Product Description
TMCP AR400 Wear resistance Steel Sheet Manufacturer Hot Rolled 6mm Thick NM360 NM400 NM450 NM500 NM550 Wear Resistant Steel Plates
AR400 wear-resistant steel plate origin Wugang delivery status quenching and tempering (Q+T) (quenching and tempering)
1, AR400 Product Introduction:
AR400 is a high-strength wear-resistant plate.
Naming: N is the first pinyin letter of the two Chinese characters "Nai" and "Mo", while 400 represents the average Brinell hardness of this steel plate.
2, NM450 Function and Performance:
Function: It mainly provides protection in situations or parts that require wear resistance, prolonging the service life of the equipment, reducing maintenance downtime caused by maintenance, and correspondingly reducing investment in funds.
Performance: Performance: Yield over 950, tensile strength above 1180.

GB NM400 Wear Resistant Steel Plate Cuttable Quenched Tempered Heat Treatment Hot Rolled High Hardness 400HB Metal plate
Standard grade	DIN: XAR300,XAR400, XAR450, XAR500, XAR600, DILLIDUR400V,DILLIDUR450V,DILLIDUR500V; X120Mn12; 1.3401; SSAB:400,450,500,550,600;WELDX700,WELDX900,WELDX960; NF: FORA400,FORA500,Creusabro4800,Creusabro8000; EN: QUARD400,QUARD450,QUARD500 ; RAEX320,RAEX400,RAEX450,RAEX500; DUrostat400,DUrostat450,DUrostat500; JIS: JFE-EH360,JFE-EH400,JFE-EH500, WEL-HARD400, WEL-HARD500; SUMIHARD-K340,SUMIHARD-K400,SUMIHARD-K500 GB: NM360,NM400,M450,NM500,NM550,NM600,NR360,NR400,B-HARD360,B-HARD400,B-HARD450,KN-55,KN-60,KN-63.
Treatment	Quenched&Tempered Steel Plate
Thickness	Common 2~100 mm (1~300 mm)
Width	Common 10~2500 mm (600~2500 mm)
Length	100~12000 mm, customized
surface	Clean, finishing,blasting and painting according to customer requirement
Certificate	MTC will be provided with goods, third part inspection is acceptable, for example BV,SGS.
Trading term	EXW, FOB, CFR, CIF
Application	Widely used in a variety of architectural and engineering structures,such as 1.) metal constructions such as buildings,bridges,ships; 2.) transmission tower, reaction tower; 3.) lifting transportation machinery; 4.) industrial furnace;boilers 5.) container frame, warehouse goods shelves, etc

GB/T 24186 NM Wear Resistant Steel Plates Chemical Composition(%) max.
Grade	C	Si	Mn	P	S	Cr	Ni	Mo	Ti
NM300	0.23	0.70	1.60	0.025	0.015	0.70	0.50	0.40	0.050
NM360	0.25	0.70	1.60	0.025	0.015	0.80	0.50	0.50	0.050
NM400	0.30	0.70	1.60	0.025	0.010	1.00	0.70	0.50	0.050
NM450	0.35	0.70	1.70	0.025	0.010	1.10	0.80	0.55	0.050
NM500	0.38	0.70	1.70	0.020	0.010	1.20	1.00	0.65	0.050
NM550	0.38	0.70	1.70	0.020	0.010	1.20	1.00	0.70	0.050
NM600	0.45	0.70	1.90	0.020	0.010	1.20	1.00	0.80	0.050
B: 0.0005-0.006, Als min. 0.010

GB/T 24186 NM Wear Resistant Steel Plates Mechanical Properties
Steel Grade	Thickness	Hardness (HBW)	Elongation	Tensile Strength
NM300	≤80	270-330	≥14%	≥1000 Mpa
NM360	≤80	330-390	≥12%	≥1100 Mpa
NM400	≤80	370-430	≥10%	≥1200 Mpa
NM450	≤80	420 - 480	≥7%	≥1250 Mpa
NM500	≤70	≥470	-	-
NM550	≤70	≥530	-	-
NM600	≤60	≥570	-	-

Grade Comparison
GB	NM300,NM360,NM400,NM450,NM500
SS	HARD400, HARD450, HARD500, HARD600
DIN	XAR400, XAR450, XAR500, XAR600, Dillidur400, Dillidur500
NBN	QUARD400, QUARD450, QUARD500
NF	FORA400, FORA500, Creusabro4800, Creusabro8000
JIS	JFE-EH360, JFE - EH400, JFE - EH500, WEL-HARD400, WEL-HARD500
SFS	RAEX400, RAEX450, RAEX500

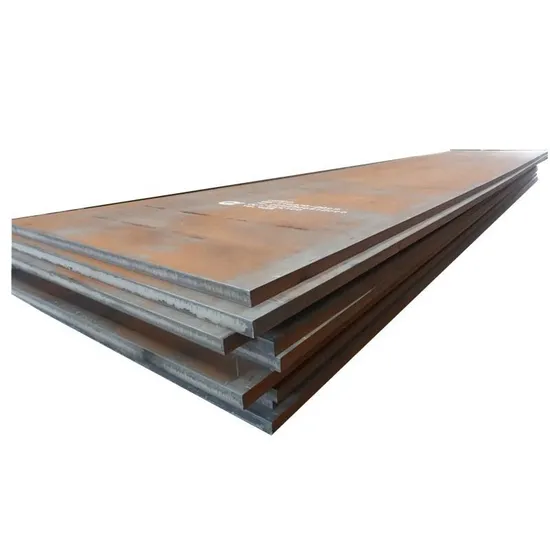

Detailed Photos
Product Application
For ship building To prevent the hull from being corroded by chemical corrosion, electrochemical corrosion and sea life and microorganisms.It is used in make ship body ,decks etc. Such as A36. Carbon steel plate can be used as factory equipment manufacturing Customer Feedback
Certifications
Quality Inspection
All our products are strictly tested for quality before packaging, and unqualified products will be destroyed and customers can appoint third parties to inspect the products before loading too.
Packaging & Shipping
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM,27MTS
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM,27MTS
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM,27MTS


FAQ
Q: Are you trading company or manufacturer ?
A: We are professional manufacturer for many years. we can provide a wide range of steel products. Q: Will you delivery the goods on time? A: Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet. Q: Do you provide samples ? is it free or extra ? A: The sample could can provide for customer with free,but the courier freight will be covered by customer account. Q: Do you accept the third party inspection? A: Yes absolutely we accept. Q: How could you guarantee your products? A: Each piece of products is manufactured by certified workshops, inspected by Jinbaifeng piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality. Q: How can I get your quotation as soon as possible? A: The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement , we will work out a best price soon.
