UHMWPE Plastic RV Utility Block Crane Outrigger Pads Truck Foot Pad

Product Description

Product DescriptionUHMWPE Plastic RV Utility Block, Crane Outrigger Pads, Jack Pads, Truck Foot Pad
INTRODUCTION
Mobile UHMWPE Polyethylene Stabilizer Outrigger Pads, supply a range of lightweight and long-lasting spreader plates that offer stable support when operating cranes, aerial work platforms and mobile plant. Made from high quality, heavy duty UHMW polyethylene, our range of outrigger pads offer protection against water, corrosion and splintering - a huge advancement over the more traditional wooden and steel alternatives. XINXING outrigger pads are lightweight and easy to handle pads combine strength and durability, spreading the pressure of equipment stabilizers and outrigger legs on any terrain where load bearing capacity is an issue.
UHMWPE Plastic RV Utility Block, Crane Outrigger Pads, Jack Pads, Truck Foot Pad
Our pads are widely used by operators of cranes and powered access platforms, plant hire companies as well as knuckle boom crane installers. Other sectors where we have satisfied customers include emergency services, events management, facilities management, telecommunications, temporary buildings, utilities contractors, and vehicle recovery firms.
We offer a comprehensive range of products for these applications, with vertical load bearing capacities from 5 to 300 tons, and prices to suit all budgets.
Guaranteed Unbreakable
- Made in the China
- Leading time within 15 days
Here, any size and color of Crane Outrigger Pad are available with us.
KEYWORDS
Crane outrigger pads, crane pads, stabilizer plates, spreader plates, outrigger pads, multi-mat systems, motorhome and caravan pads, bespoke outrigger pads, custom design outrigger pads, crane outrigger pads, recessed pads, anti slip HDPE pad, anti-impact plastic outrigger pad, UHMW, HDPE block pad, Crane leg support pad, stabilizer foot pad, engineered outrigger pads, cribbing blocks
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
XINXING
Model Number:
XPAD02
Material:
PE
Thickness:
10-300mm
Size:
upon your requirement
Certification:
ISO 9001:2008
Molecular weight:
0.5 million to 9 million
Withstands loads:
above 20 MPA
Withstand compressive load:
450T
Product informationstandard black; but many other colors can be customizedcustom sizes available;Logo imprint available; light weight;not brittle under cold, works from -80ºC to 100ºC;non-conductive, non-magnetic, and non-fibrous;absorbs no water;
Caravan Outrigger Pad Crane Rigger Pad UHMWPE Mobile Support Pad
ADVANTAGESOn soft ground these pads help prevent the stabilizers sinking into the soil, which will prevent the equipment from tipping.Made from high performance polyethylene, our pads won't splinter or corrode and have a very high resistance to vertical pressure. Coupled with the fact that it is waterproof, this significantly extends the products' working lives compared to pads made of wood or metal. The material also cleverly adapts to the contours of uneven terrain - but will spring back to its original shape after use. Ultra High Molecular Polyethylene, which makes them more strong and have an extra Long Life.Built for extreme environmentsDo not lose impact strength over timeCorrosion and chemical resistantSuper compression strengthNo bad smell and non-toxicNon conductivedo not absorb moisture and will not swell up over time due to exposure outdoors;do not lose their impact strength over time;are flexible, so they will bend but not break under extreme loads;are easy to clean due to their low friction surface;resistant to chemical;safer to use in the field compared to other wood based pads;light weight, 1/7 the weight of steel;withstands loads up to above 20 MPA;retains its physical properties to -80ºC;high impact & wear resistance;can withstand over 450Tons of compressive load
APPLICATIONSSpreader plates for access platforms and mobile plant such as concrete pumpsCrane mats for mobile cranesJack pads for caravans and motorhomesSpreader plates for mobile exhibition unitsBespoke solutions for industrial applications.put under the support-leg Truck Crane, Crawler Crane, Rough Crane, Boom Pump, Concrete Pump, Tree Trimmer, can use on Any type of Aerial Equipment, to make the machine more stable and working environment more safe.Vehicle lining boardSelf erecting tower cranes,Crawler cranes,Aerial work platforms,Truck mounted cranes,Mobile crushing equipment,Cherry pickers/boom lifts,Fire and utilities trucks,Knuckle boom crane installers,Vehicle mounted platforms,Concrete pumps.Digger derricks

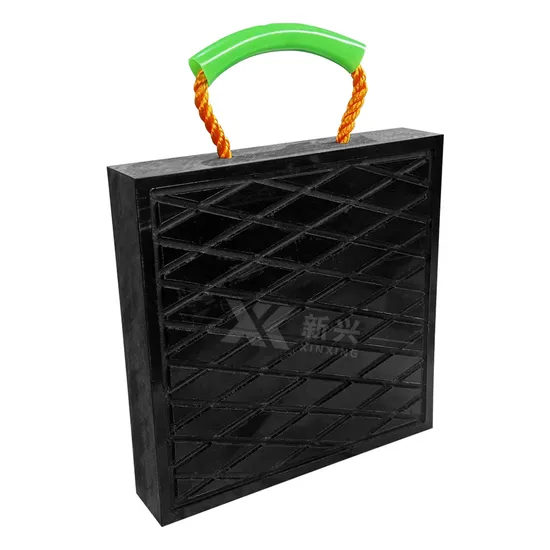

Different surface;Smooth Surface B Circle in Middle Carved diamond pattern According to Custom, such as:LOGO Different types of handles
* nylon rope and rubber sleeve
* with hole holder on top/ side
Different shapesSquareroundrectanglecustomized
Shandong Ningjin Xinxing Chemical Co.,LTD
Crane outrigger pads Data sheet

Thickness()(inch)	Pad size()(inch)	Part Number()	45 o Load()(ton)	Vertical Load()	PadWeight()
1" Square	18X18	X1T1818	14 tonnes	25 tonnes	5.00kgs
1" Rectangle	20X24	X1T2024	16 tons	27tons	7.63kgs
1"Square	24X24	X1T2424	16 tonnes	24 tonnes	9.15kgs
1"Square	30X30	X1T3030	18 tonnes	36 tonnes	14.3kgs
1"Square	36X36	X1T3636	19 tonnes	42 tonnes	20.6kgs
1"Square	48X48	X1T4848	22.5 tonnes	59 tonnes	36.62kgs
1"Round	30"Dia	X1TR30	12 tonnes	28 tonnes	11.23kgs
1"Round	36"Dia	X1TR36	15 tonnes	32 tonnes	16.16kgs
1"Round	48"Dia	X1TR48	18 tonnes	45 tonnes	28.75kgs
1-1/2" Square	18X18	X1.5T1818	14 tonnes	25 tonnes	7.73kgs
1-1/2" Square	24X24	X1.5T2024	16 tonnes	27 tonnes	13.73kgs
1-1/2" Square	30X30	X1.5T3030	19 tonnes	37 tonnes	21.46kgs
1-1/2" Square	36X36	X1.5T3636	20 tonnes	43 tonnes	31.00kgs
1-1/2" Square	48X48	X1.5T4848	23 tonnes	59 tonnes	55.00kgs
1-1/2" Round	30"Dia	X1.5TR30	14 tonnes	28 tonnes	16.85kgs
1-1/2" Round	36"Dia	X1.5TR36	15 tonnes	32 tonnes	24.24kgs
1-1/2" Round	48"Dia	X1.5TR48	18 tonnes	45 tonnes	43.13kgs
2"Square	18X18	X2T1818	14 tonnes	26 tonnes	10.30kgs
2"Rectangle	20X24	X2T2024	18 tonnes	28 tonnes	15.26kgs
2"Square	24X24	X2T2424	18 tonnes	28 tons	18.31kgs
2"Square	30X30	X2T3030	19.5 tonnes	38tonnes	28.62kgs
2"Square	36X36	X2T3636	20 tonnes	44 tonnes	41.20kgs
2"Square	48X48	X2T4848	25 tonnes	63 tonnes	73.25kgs
2"Round	30"Dia	X2TR30	15 tonnes	30 tonnes	22.47kgs
2"Round	36"Dia	X2TR36	16 tonnes	32 tonnes	32.33kgs
2"Round	48"Dia	X2TR48	19 tonnes	45 tonnes	57.51kgs
2 -1/2" Square	24X24	X2.5T2424	17.5 tonnes	28 tonnes	22.89kgs
2 -1/2" Square	30X30	X2.5T3030	19 tonnes	39 tonnes	35.76kgs
2 -1/2" Square	36X36	X2.5T3636	20 tonnes	45 tonnes	51.50kgs
2 -1/2" Square	48X48	X2.5T4848	24 tonnes	60 tonnes	91.56kgs
2 -1/2" Round	30"Dia	X2.5TR30	15 tonnes	29 tonnes	28.09kgs
2 -1/2" Round	36"Dia	X2.5TR36	15.3 tonnes	33 tonnes	40.41kgs
2 -1/2" Round	48"Dia	X2.5TR48	19 tonnes	46 tonnes	71.88kgs
3"Square	24X24	X3T2424	18 tonnes	29 tonnes	27.47kgs
3"Square	30X30	X3T3030	20 tonnes	40 tonnes	42.92kgs
3"Square	36X36	X3T3636	22 tonnes	47 tonnes	61.80kgs
3"Square	48X48	X3T4848	26 tonnes	66 tonnes	109.87kgs
3"Round	30"Dia	X3TR30	15 tonnes	30 tonnes	33.70 kgs
3"Round	36"Dia	X3TR36	16 tonnes	36 tonnes	48.49kgs
3"Round	48"Dia	X3TR48	20 tonnes	51 tonnes	86.26kgs

Company Profile Shandong Ningjin Xinxing Chemical Co.,LtdEstablished in 1989, Xinxing has a history of 33 years in Manufacturing ENGINEERING plastics. Now it is the largest and most professional manufacturer of Engineering plastics, such as PP sheet / HDPE sheets, boards, rods, outrigger crane mats, marine fender boards, ground protection mats, rink ice and other machine processing parts.We have advanced extrusion and compression molded machines, CNC devices, can make any shape product according to customer's requirements. Xinxing has 3 banch factories which passed ISO9001 and ensure all of products compliance with its standard. Our products are used widely in electric power, ports, mining, coal, paper, textile, chemical industries. They are popular in Canada, USA, Russia, Japan, England, Indonesia, Malaysia, India, Italy, South Africa, Chile, Belgium, etc.
Our machines
Producing machine of UHMWPE sheet for marine fender facing pad dock bumper
We are on trade shows: Relative products
Ultra high molecular weight polyethylene plate, as the fender plate of the wharf, can prevent the damage caused by the collision between the ship and the wharf. It has good impact resistance and can replace the traditional rigid fender. It is widely used in various major ports, wharfs and ports at home and abroad.
Totally safe, versatile and very durable. The durable dock bumpers are suitable for all situations and are very easy to install and maintain, preventing damage to docks, trailers and vehicles.
For all vehicle and trailer types these very versatile and durable in height adjustable bumpers are made of high quality PE for safe docking preventing damage to both the dock, the vehicle and the trailer.
Most pop dimension for fender pad/ dock bumper pads:
600*600*50mm,800*800*50mm, 3000*1000*50mm; 250*400*50mm dock bumper
Colors: yellow, black, red, etc.
We are manufacturer, we have many materials and machined to meet customers' any requirement.XINXING HDPE temporary ground protection muddy road solution construction mats provide a much better return on investment than traditional plywood. They are more economical, support much more weight, will not warp, rot, crack, delaminate, or absorb water and contaminants. These mats can be reused for many years.
Top Features for Ground Protection Mats 4x8 ft BlackEasily supports 120-ton loadsRugged 1/2 inch thick recycled polyethyleneBold cleat design for great tractionBuild a roadway or working platform in minutesLeave turf smooth, even in soft conditionsNo more splintered, warped, water logged plywoodSimply hosing down leaves the mats cleanAvailable in both black or clear mats
Welcome to contact us to learn more information about the products your are interested!
