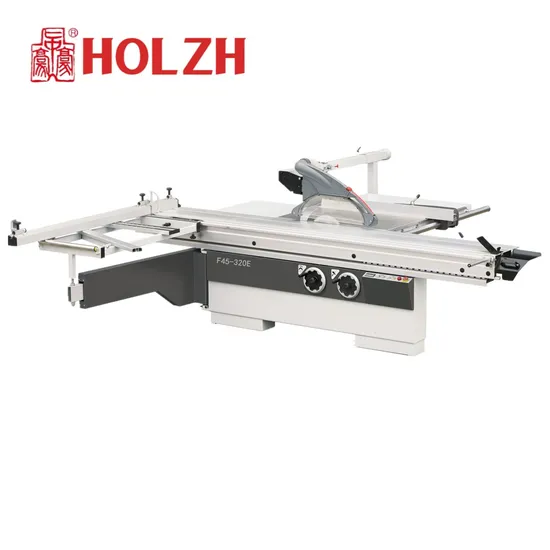

Woodworking Machinery Panel Precision Cutting Plywood MDF Solid Wood Sliding Table Panel Saw
| US$2,800.00-3,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
F45-320E
Power Type
Electric
Layout
Horizontal
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Normal Precision
Certification
CE, ISO
Customized
Customized
Condition
New
Color
White
After-sales Service
1 Year
Main Saw Blade Diameter
350*30mm
Grovoving Saw Blade Diameter
120*20mm
Tilting Saw Blade
0-45 Degree
Dimensions of Sliding Table
3200*430mm
Dimensions
3800*430mm
Transport Package
Plastic Film Package.
Specification
ISO9001
Trademark
HOLZH
Origin
Qingdao China
HS Code
8465910000
Production Capacity
100sets/Month
Product Description
| Model | F45-320E |
| Dimensions of sliding table | 3200*430mm |
| Max sawing thickness | 95mm |
| Max. length between saw and rip fence | 1250mm |
| Power of main saw spindle | 5.5kw |
| Rotary speed of main saw spindle | 4400/5600r/min |
| Diameter of main saw | Φ350mm |
| Diameter of main saw spindle | Φ30mm |
| Power of grooving saw | 0.75kw |
| Rotary speed of grooving saw | 8500r/min |
| Diameter of grooving saw | Φ120mm |
| Diameter of grooving saw spindle | Φ22mm |
| Tilting saw blade | 45° |
| Dimension | 3200*1100*840mmm |
| Weight | 800kg |
Function:
Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, MDF board, organic glass plates and solid wood and others with wood structure and similar hardness
Characteristic:
1Manual control for saw blade lifting and tilting 0-45°
2Digital display can be accurate to 0.1 degree
3 Round steel bar Sliding table is with solid double T-slot and multi-point locking system make it more convenient
4Sturdy and quiet operational internal structure: the whole finished assembly spindle is adopted dynamic balance processing. The case reinforce iron parts provide as powerful guarantee for the quiet operation
5Crosscut ruler is with V design which eliminate the gap
6Luxurious dust hood: although the effect of under dust sucking is very good, the luxurious overhead dust hood can make a little bit of overflow dust disappearing
Round steel bar Sliding table is with solid double T-slot and multi-point locking system make it more convenient. | |
Digital display saw tilt can be accurate to 0.1 degree. | |
Sturdy and quiet operational internal structure, the whole finished assembly spindle is adopted dynamic balance processing. | |
Crosscut ruler is with V design which eliminate the gap ,ensure the cutting precision, , the plate is firm and the pushing plate is flexible. | |
Manual control for saw blade lifting and tilting 0-45º. | |
The case reinforce iron parts provide as powerful guarantee for the quiet operation. |
