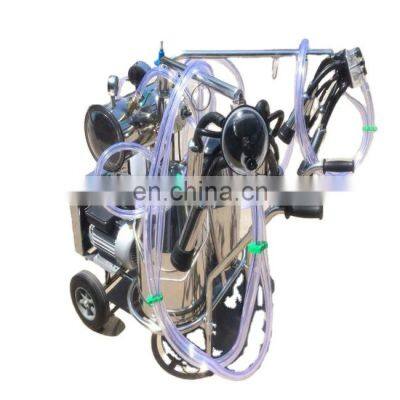

Vacuum Pump Portable Goat Milker Milking machine milking machine

Product Description

Product Description
Vacuum Pump Portable Goat Milker Milking machine milking machine 1.Main structure The milking machine is mainly composed of vacuum pump unit, milking device and chassis .2.Work principle The design of milking machine imitates the movement which the calf is nursed, the vacuum provides the power for the milking machine, the milk cup group is the instrument which completes milking directly.The tubbish space between the milk cup sheath is called intermural chamber, which is controlled by the connection of the short pulse tube and the pulsator3.About this machine .This machine Have two model, one is single can, the other is double cans .power 110v 220v 240v 380V. .this machine can make as clients' request. Data parametersmodel 9JYT-8 piston pump stylespecificationcommonMilking cup groupThe milking group number2 sets pulsating frequency60-64times/min pulsatory ratio60:40 Operating Vacuum Degree50Kpa Working Efficience20-24cows/hourElectricmotorPower Fitted0.55KW Voltage220v/380vMilk bucketVolume /piece25L Milk bucket number2 piecesMachine/setpacking measurement84x73x94cm Net weight72Kg Gross weigh90kg
