High Efficiency 165 to 219 Welded Tube Production Equipment

Product Description

Overview
Basic Info.

Model NO.	165 expanded to 219 Used high frequency Welded Tube making machine	Application	Industry
Type	Pipe Production Line 165 expanded to 219 Used high frequency Welded Tube making machine	Product Name	China Factory Price ERW Pipe & Tube Mill 165 expanded to 219 Used high frequency Welded Tube making machine
Usage	making steel pipe	Cutting System	Computer servo flying saw
Round Pipe Diameter	Φ 89 - 219 mm	Round Pipe Wall Thickness	δ 2.0 - 8.0mm
Square/Rectangle Size	70 X 70 - 150 x 150 mm 60 X 80 - 60 x 180 mm	Square/Rectangle Wall Thickness	δ 2.0 - 6.0mm
Origin	China	Export Port	Jiujiang
Advantages	Right feed	Machine Color	Blue
HS Code	85152191	Product Speed

Product Description of 165 expanded to 219 Used high frequency Welded Tube making machine:

No	Item	Numerical value
1	Round pipe diameter	Φ 89 - 219 mm
2	Round pipe thickness	δ 2.0 - 8.0mm
3	Square tube size	70 X 70 - 150 x 150 mm
4	Square tube thickness	δ 2.0 - 6.0mm
5	Rectangular tube size	60 X 80 - 60 x 180 mm
6	Rectangular tube thickness	δ 2.0 - 6.0mm
7	Produce speed	M/min.

Technological Process of 165 expanded to 219 Used high frequency Welded Tube making machine:

Product Configuration of 165 expanded to 219 Used high frequency Welded Tube making machine
No.	Name	Introduction
1	Loading system: Uncoiler,press arm,shovel head pinch device welding table	Wight of steel coil: 15TON
2	Accumulator	Type: Ground Spiral Accumulator ,Φ6M
3	Forming welding and sizing machine	Forming machine,Guiding and extrude and scraper,Cooling tank,Sizing machine,Straightening machine
4	Main driven motor	220KW/750RPM Main driven motor,2 stands
5	Flying saw	Brand: CONTOR Type: Hot saw
6	Run-out table	no run-out table,can be added
7	Solid-state High-frequency welder	2 options available: 1),Brand: Sanyi TianXing ,Mfg.date:2012 ,600KW 2),Brand: SiFang Sanyi ,Mfg.date:2019 ,500KW including: Rectified cabinet Inverter cabinet Cooling device Speed adjustor,2 stands Operating table
8	Roller	Type: Φ 140

Product Parameters

Product Parameter of 165 expanded to 219 Used high frequency Welded Tube making machine
Mechanical name		Parameter information
Forming welding and sizing machine	Forming machine	Horizontal-roll stands Quantity	7 stands
		Diameter of horizontal shaft	Φ 150 mm
		Vertical-roll stands Quantity	stands
		Diameter of vertical shaft	Φ 90 mm
		Power transmission method	From universal transmission joint to horizontal roll stands
	Sizing machine	Horizontal-roll stands Quantity	4 stands
		Diameter of horizontal shaft	Φ 150 mm
		Vertical-roll stands Quantity	stands
		Diameter of vertical shaft	Φ 90 mm
		Power transmission method	From universal transmission joint to horizontal roll stands
	Straightening device	Type	Turkish heads,2 sets
	Main driven motor	Main driven motor pow165 expanded to 219 Second hand high frequency Welded Tube Miller	220KW/750RPM,2 stands
Flying saw		(1)Cutting Maxi. Diameter	Φ 219 mm
		(2)Cutting Maxi. Wall-thickness	8.0 mm
		Cutting speed

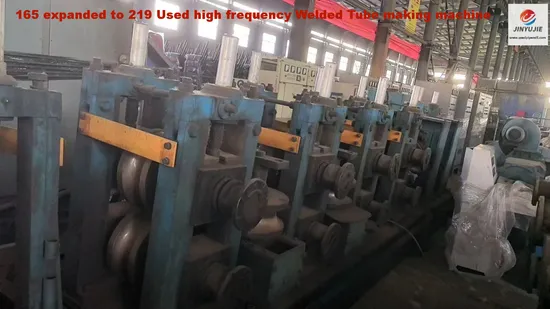

Photos of 165 expanded to 219 Used high frequency Welded Tube making machine
Photos of 165 expanded to 219 Used high frequency Welded Tube making machine
Photos of 165 expanded to 219 Used high frequency Welded Tube making machine
Company Profile
Foshan Shunde jinyujie mechanical and Electrical Equipment Co., Ltd. (hereinafter referred to as jinyujie mechanical and Electrical Equipment Co., Ltd.): the company was established in 2001, the main business is the acquisition and transfer of second-hand welded pipe units, and one-stop to provide customers with installation, commissioning, maintenance, customization and other services. Focusing on the high frequency welded pipe industry for 30 years, 17 years of high frequency manufacturing and service experience. In the past 17 years, we have provided more than 2000 enterprises with high quality products and one-stop service support. Second hand welded pipe production equipment and accessories, talent and technology war.
A large number of second-hand real source, rapid integration of the entire second-hand welded pipe production line. Installation and commissioning services can be provided at home and abroad to ensure the rapid production of qualified steel pipes. Long term cooperation with a number of welded pipe equipment manufacturers, complete spare parts. Adhering to the development concept of "honesty, pragmatism, creating value for customers", we are committed to providing valuable services for customers.

Packing and Shipment
Our customer and partner
After Sales Service
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
Customized service
1.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly.
2.We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3. 12 Months guarantee and life-long technical support.
4.Well-trained & experienced staff are to answer all your inquiries in English and Chinese.
5.24 hours for engineer response.
6.Your business relationship with us will be confidential to any third party.
7.Good after-sale service offered,please get back to us if you got any questions.
Quality Control
Our engineer would test the machine before delivery to ensure the machine running smoothly.
