Finishing Feed Pellet Production Line for Cattle and Sheep

Product Description

Product Description

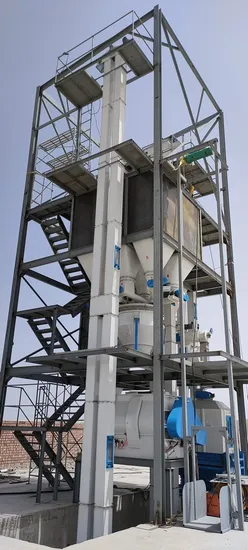

Poultry and livestock feed pellet production line
Poultry feed production line flow diagram:
Material receiving → precleaning process → grinding process → batching&mixing process → pelleting process → cooling&sifting process → packing process.


Product Parameters

No.	Item		SZLH250	SZLH320	SZLH350	SZLH400	SZLH420	SZLH508
1	Capacity (ton)		0.5-1.5	2-3	3-5	5-6	6-8	8-10
2	Power(KW)	Main machine	15/22	37	55	75/90	90/110	132/160
		Screw feeder	0.55	0.75	0.75	1.5	1.5	1.5
		Conditioner	1.5	3	3	5.5	5.5	11
3	Inner diameter of die (mm)		φ250mm	φ350mm	φ350mm	φ400mm	φ420mm	φ508mm
4	Pellet size (mm)		φ2-φ18mm	φ2-φ18mm	φ2-φ18mm	φ2-φ18mm	φ2-φ18mm	φ2-φ18mm
5	No. of press roll		2	2	2	2	2	2
6	Shaping rate(%)		≥95%	≥95%	≥95%	≥95%	≥95%	≥95%

Our Advantages
1.We are the direct supplier of whole feed production line,will adjust the aperture, compression ratio, horn mouth, release distance according different raw materials to improve the production and service life of the ring die;
2.We are the direct supplier of whole feed production line,will reasonably advice the corresponding screen hole szie and hammer blade materials and final particle size;
3.We are the direct supplier of whole feed production line,will choose best motor, reducer, bucket, belt and other spare parts
4.We have our own factory and product whole production line by ourselves,can control the lowest price,quality and delivery time

Application
Applicable for fertilizer pellet,feed pellet for poultry and livestock...

FAQ
1. What's your raw material?
Wood chipper, log, sawdust, or etc.
2. What's the capacity do you want?
1t/h,2t/h,3t/h...
3. What's the pellet diameter you want?
We can produce Φ2mm-Φ12mm etc.
4. What's the size of your factory?

Contact with us
O(∩_∩)O Welcome you to inquiry at any time, we promise any inquiry will get our prompt reply.
Best Regards,
Ella
---------------------
Liyang Weifeng Equipment Co., Ltd.
Add: No.108 Jingang Road, Zhongguancun Science&Technology Park,Liyang, Jiangsu, China
