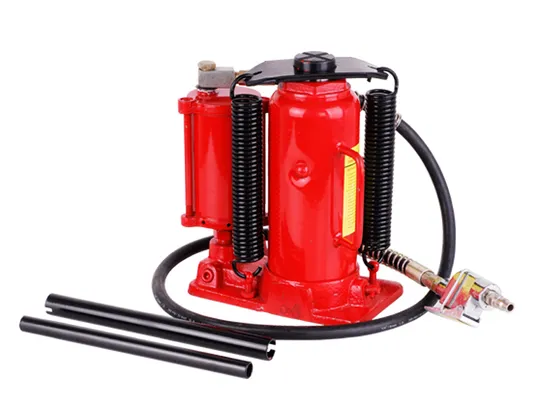

Air Bottle Jack Repair Lift Tools for Car 12 Ton CE

Product Description

Model	Capacity	Min.H	Lifting.H	Adjust.H	Max.H	N.W	G.W	Package	Measurement	Qty/Ctn	20' Container	TWO HANDLE
	(ton)	(mm)	(mm)	(mm)	(mm)	(kg)	(kg)		(cm)	(pcs)	(pcs)	(cm)
ST0507Q	5	210	140	80	430	6	7	Carton	17x20x23	1	2100	24
ST1207Q	12	250	165	80	495	12	13	Color Box	24x18x28	1	1350	24
ST2007Q	20	260	170	80	510	16	17	Color Box	28x20x28	1	1000	24
ST2007QL	20	210	100	80	390	15	16	Carton	26x21x23	1	1150	24
ST3207Q	32	250	150	/	405	21	22	Carton	29x22x27	1	700	24
ST5007Q-1	50	260	160	/	420	33	35	Carton	37x30x29	1	650	25

Notes: 1.When the vehicle is jacked up,do not open the engine,because the engine vibrates and the weels of cars turned easy to cause the jack slide down. 2.Before operating the jack, find a fixed position. Operating Instruction 1.Before operating,estimate the weight of the load,Do not overload the jack beyond its rated load. 2.Select point of action according to the gravitational center place the jack on the hard ground if necessary,place a hard plank under the jack so as to avoid tottering or falling during operation. 3.Before operating the jacks,first,insert the notched end of the handle.into the release valve.Turn the operating handle clock wise until release value is closed.Do not over tighten the value. 4.Insert operating handle into the socket and the ram is steadily raised by the up and down movement of the handle and the load is raised.the ram will stop rising when the required height is reached. 5.Lower the ram by turning the release valve.Counterclockwise with the notched end slacken it slowly when a load is applied,or accidents can occur. 6.When more than one jack is used at the same time it is important to operate the different jacks at an equal speed with equal load.Otherwise,there is danger of falling the entire fixture. 7.Violent shocks must be avoided during the operation. 8.User must operate the jack correctly according to operating instruction:If the jacks has some quality problems,it can not be operated. Our factory is founded in Jiaxing city in 2004, our company is a special enterprise integrating research, design, developement and specialize in and manufacturing Hydraulic bottle jack, floor jack, long floor jack, air bottle jack, portable hydraulic equipment, jack stand, vehicle positioning jack, shop crane, load leveler, motorcycle lift, shop press, hydraulic shop press, etc.
