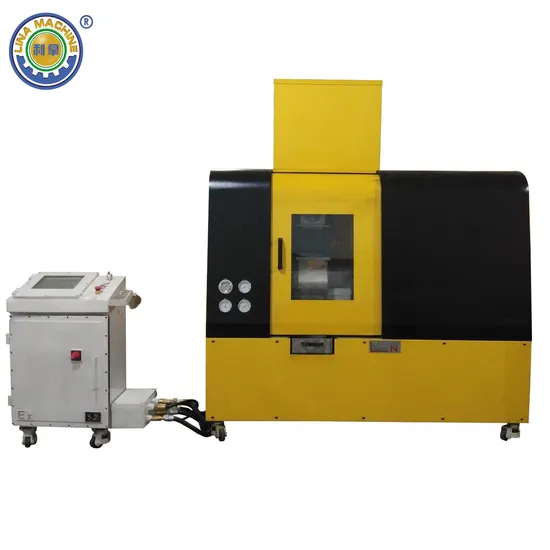

0.5-10L Factory Price Dust-Proof Rubber and Plastic Mixing Kneader for Laboratory Test

Product Description

Working principle: M-W pressing and molding mixing tank is applied to ensure good abrasion resistance and even mixture of materials and optimized change of physical nature. 2-turning design is applied for leakage-proof device to largely enhance leakage proof performance, and the built-in dust collector allows for convenient and quick collection of dusGeneral technical specifications for lab kneader mixer

Model	LN-F-0.5L	LN-F-1L	LN-F-3L	LN-F-5L	LN-F-10L
Mixing capacity (L)	0.5	1	3	5	10
Driving motor (KW)	2.2	3.7	5.5	7.5	15
Hydraulic tilting (KW)	0.75	0.75	0.75	0.75	1.5
Tilting angle (°)	110	110	110	110	110
Air compressor (KW)	1.5	2.2	2.2	2.2	2.2
Water cooling (Mpa)	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4
Electric heating (KW)	2.8	5.7	6.3	6.3	12
Machine weight (KG)	1000	1200	1200	1400	2000
Dimensions (mm)	1860*1000*2050	1900*1000*2100	2100*1200*2100	2100*1200*2100	2500*1300*2600

Mass Production Kneader Mixer with Different Rotors
LINA Shear Type Dispersion Kneader for Rubber is suitable for a wide range material including high filling rubber, plastic, elastomers, ceramics and mental, and other solids, semi-solid and powder materials. To ensure the maximum dispersion effect, the specification of rotor, top and down ram is optimized. This model of Intermeshing Type banbury mixer, the rotor must be driven by a constant speed connecting gear, the large diameter of one rotor interacts with the small diameter of the opposite. There is ridges on the rotor, the ridges are helically shaped along the rotor to allow the mixing material to move axially within the mixing chamber. Dispersion mixing is mainly carried out in a small gap between two size rotors. For high hardness materials, Tungsten carbide can be casted on the surface of rotors and mixing chamber. In addition, surface that directly contact with the materials is mirror polished which ensures all the materials easy to be cleaned without stickiness and avoid formula lost and pollution. This type of Small Size Banbury Kneader with Intermeshing Type is able to meet the large demand in today`s industry. Intermeshing Type Dispersion Kneader, Intermeshing Type Dispersion Kneader, Intermeshing Kneader For Rubber Mixing, Rubber Intermeshing Type Kneader

Characteristics of Mass Production Kneader Mixer for Rubber
1. Higher cleanness: Clean up the material without dead corners, the mixing chamber and rotors can be separated completely; All surface that directly contact with the material is mirror polished, which ensure all the materials easy to clean without stickiness.
2. Wearable inner cavity: Imported special new alloy steel and Vacuum heat treatment are adopted. Strong wear resistance, resistance to horizontal erosion, corrosion resistance and high glossy finish effects are achieved.
3. Adjustable rotor speed ratio: The speed ratio of rotors is adjustable, which target at some special material function requirements and achieve best dispersion effect and efficiency.
4. Temperature control system: A lot of trials report that stage temperature control has the essential effect of ceramics` color difference.
PLC intelligent control system:
1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code.
2. The control system can be set up to 20 mixing steps, save 20 recipe spaces.
3. The control system is capable of remote importing of the process recipe and data monitoring, and communicating with MES via Ethernet communication interface.
4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided
FAQ
Q1: Are your company a trading one or a factory?
A: Yes, we are a manufactured factory & trade (integration).16 years focusing on rubber and plastic equipment,CIM&MIM granulation system and Laboratory Testing machine field. Warmly welcome to visit our plant (factory), we also support OEM and ODM.
Q2: After an order is placed, when to deliver?
A: The delivery time of standard machine could be within10-60 days. Please be aware that our production lead times depend on specific items and item quantities.
Q3: What is your warranty ?
A: 12 months product warranty, but lifetime for services. Free Non-consumable components will be provided if any performance failure occurs within 12 months, caused by non-human damage.
Q4: How-to video provided ?
A: Yes. If required, our engineers will record a specialized how-to video for you.
Q5: What about the after-sales service and product's quality?
A: 12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support. And help the customer solve problems encountered while using our product, handles problems and complaints professionally and timely. Each of the instruments must be carried out 100% quality examination and test when shipping and delivery goods.
Q6: What about the packing of equipment?
A: Covered with heat shrink film before put the machine into the standard exporting wooden case, which not only has good shock absorption, impact resistance, heat SSO has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
If you have any further questions, please contact us.
