Three-Way Elbow Flange Ball Valve DN25-800 Complete, Resistant to 180 Degrees Acid and Alkali, Factory Direct Salespvdf Pipe
Basic Info.
Model NO.
NSG15-450
Head Type
Rotundity
Contraction Percentage
2.6%
Temperature
-20ºC ~ 120ºC
Tensile Yield Strength
80MPa
Hot Deformation Temperature
100ºC
Bending Strength
62MPa
Product Size for Sale
DN40
Transport Package
Wooden Crate
Specification
DN10-DN450
Origin
China
Product Description

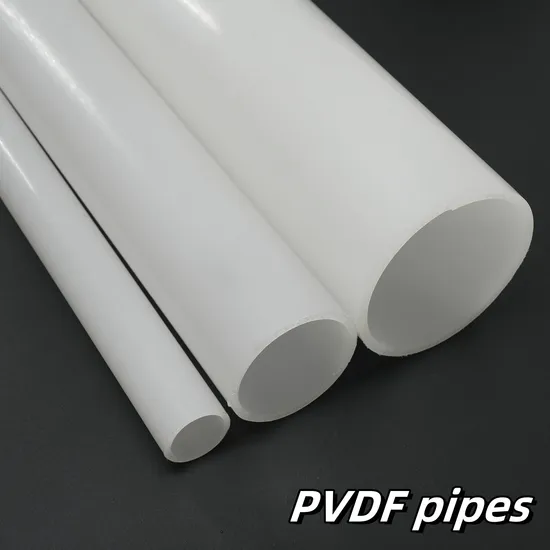

Product DescriptionNAISFU--PVDF pipe--NSG15-450--DN40
·Excellent chemical resistance, not corroded by strong oxidants such as acids, bases, and halogens at room temperature.
·High impact resistance, wear resistance, creep resistance, high mechanical strength, and good toughness.
·Excellent heat resistance, non flammability, long-term use temperature of 40-120 ºC, and high dielectric strength.
·Has outstanding weather aging resistance, ozone resistance, UV and nuclear radiation resistance.
Detailed Photos Product Parameters
| DN(mm) | φ(mm) | PN8 | PN10 | PN16 | PN20 | ||||
| S | Weight [kg/m] | S | Weight [kg/m] | S | Neigh [kg/m] | S | Weight [kg/m] | ||
| -- | φ16 | -- | -- | -- | -- | -- | -- | 1.50 | 0.14 |
| DN15 | φ20 | -- | -- | -- | -- | -- | -- | 1.90 | 0.21 |
| DN20 | φ25 | -- | -- | -- | -- | -- | -- | 1.90 | 0.27 |
| DN25 | φ32 | 2.40 | 0.44 | -- | -- | -- | -- | 2.40 | 0.44 |
| DN32 | φ40 | 2.40 | 0.55 | -- | -- | -- | -- | 2.40 | 0.55 |
| DN40 | φ50 | 2.50 | 0.73 | -- | -- | -- | 3.00 | 0.85 | |
| DN50 | φ63 | 2.50 | 0.93 | 2.50 | 0.93 | 3.00 | 1.09 | 3.60 | 1.29 |
| DN65 | φ75 | 2.50 | 1.11 | 2.50 | 1.11 | 3.60 | 1.55 | 4.30 | 1.83 |
| DN80 | φ90 | 2.80 | 1.48 | 2.80 | 1.48 | 4.30 | 2.22 | 5.10 | 2.60 |
DN100 | φ110 | 3.00 | 1.94 | 3.40 | 2.20 | 5.30 | 3.32 | 6.30 | 3.90 |
| φ125 | 3.00 | 2.21 | 3.90 | 2.84 | 6.00 | 4.24 | -- | -- | |
| DN125 | φ140 | 3.00 | 2.49 | 4.30 | 3.52 | 6.70 | 5.31 | -- | -- |
DN150 | φ160 | 3.00 | 2.85 | 4.90 | 4.54 | 7.70 | 6.96 | -- | -- |
| φ180 | 3.00 | 3.21 | 5.50 | 5.74 | 8.60 | 8.74 | -- | -- | |
DN200 | φ200 | 3.00 | 3.58 | 6.20 | 7.19 | 9.60 | 10.83 | -- | -- |
| φ225 | 3.00 | 4.03 | 6.90 | 8.95 | 10.80 | 13.67 | -- | -- | |
DN250 | φ250 | 4.48 | 7.70 | 11.09 | 11.90 | 16.76 | -- | -- | |
| φ280 | 3.00 | 5.87 | 8.60 | 13.86 | 13.40 | 21.11 | -- | -- | |
| DN300 | φ215 | 3.50 | 7.47 | 9.70 | 17.55 | 15.00 | 26.51 | -- | -- |
| DN350 | φ355 | 4.00 | 8.43 | 10.80 | 22.00 | -- | -- | -- | -- |
| DN400 | φ400 | 4.00 | 11.81 | 12.20 | 28.03 | -- | -- | -- | -- |
| DN450 | φ450 | 5.00 | 13.30 | 13.70 | 35.31 | -- | -- | -- | -- |
Note: Due to different requirements, only some series parameters will be displayed. Please contact our sales personnel for specific product information and colors.Application scenariosProperties:
Mechanical strength and toughnessHigh abrasion resistanceHigh tensile strengthHigh thermal stabilityHigh dielectric strengthHigh UV-resistanceHigh purityRelatively high coefficient of thermal expansionResistance to most chemicals and solventsWeldable
--------------------------------------------------------------------------
Application:
Chemical Tank and Equipment ConstructionSemiconductor IndustryPower and Electrical EngineeringSolar photovoltaicValves&PumpesLaboratory EngineeringFood IndustryEnvironmental technologyHigh purity waterPVDF pipe can be used together with our PVDF welding rod
Company ProfileNaisfu Precision Technology (Taizhou, Jiangsu) Co., Ltd. is a pioneering enterprise focused on the production, research and development, and sales of superior fluoroplastic raw materials and profiles. With a comprehensive range of product sizes and specifications, we ensure compliance with international production standards such as GB, DIN, ANSI, JIS, and BS. Moreover, we offer bespoke product design and manufacturing capabilities to meet unique demands. Embracing the philosophy of 'technology produces excellence, quality creates brand,' we have built a solid reputation among millions of customers. Our acclaimed products, including PVDF, FEP, ETFE, and PFA, have been widely recognized and utilized in diverse sectors such as chemicals, semiconductors, electronics, construction, biopharmaceuticals, and solar cells.Our strengths lie in our team of professional production personnel and an outstanding after-sales team, prepared to resolve any product-related issues swiftly. We provide expert guidance and tailor-made solutions, ensuring satisfaction and seamless integration into your projects.FAQQ:Are you a manufacturer or a trading company?
A:We are a manufacturer with our own production equipment.Q:How long does the delivery cycle take?A:Generally, it takes 7-15 days after payment, depending on the quantity of orders you provide.Q. What is your sample policy? A: We could offer the sample for free charge but your esteemed company will pay the cost of freight.Q. Do you test all your goods before delivery?A: Yes, we have 100% inner inspection in our own laboratory and plant before delivery.Q: How do you make our business long-term and good relationship?A: 1. We keep good quality and competitive price to ensure our customers benefit ;2. We respect every customer as our friend and we sincerely do business and make friends with them.
