Multi-Function 800-1000kg/H Poultry Feed Pellet Machine Line for Factory

Product Description

Pellet machine production line is a complete and automated system for the production of pellets, which are small, cylindrical, or spherical pellets made from raw materials such as wood, sawdust, straw, rice husks, etc. The production line consists of several machines that work together to convert raw materials into finished products.

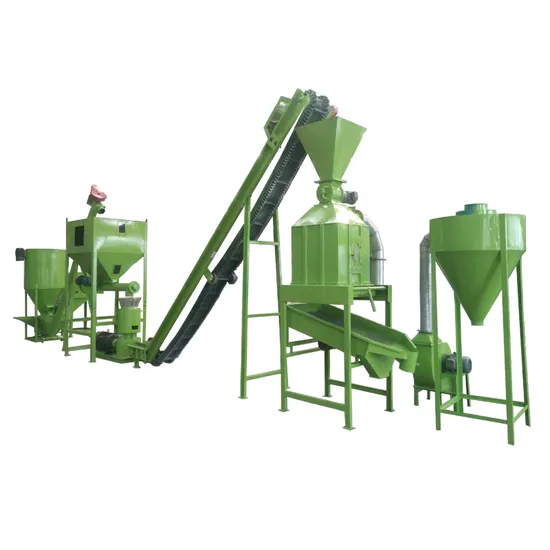

Flat Die Pellet Machine Production Line
The Flat Die Pellet Machine Production Line is a type of pellet production line that uses a flat die pellet machine. The flat die pellet machine is a type of pellet machine that uses a flat die to press the raw material into pellets. This method is suitable for small-scale pellet production.
Advantages of Flat Die Pellet Machine Production Line
The Flat Die Pellet Machine Production Line has many advantages, including:
1. Simple structure and easy operation
2. Low energy consumption and high efficiency
3. Low noise and no pollution
4. Wide range of applications
5. High quality pellets can be produced
Working Principle of Cattle Feed Pellet Machine
The working principle of a cattle feed pellet machine is to process raw materials into grain and feed pellets. The raw materials are first mixed with other ingredients and then processed by the cattle feed pellet machine.
Application of Feed Pellet Machine Line
The Feed Pellet Machine Line is widely used in the production of animal feed pellets, including cattle, sheep, pigs, horses, chickens, ducks, geese, rabbits, fish, and so on.
Required Raw Materials
The required raw materials for the production of pellets include wood chips, sawdust, straw, rice husks, cornstalks, soybean meal, peanut shells, cottonseed meal, and other agricultural wastes.
Technical information of Flat Die Pellet Machine Production Lines

No.	Name	Model	Picture	Technical Specification
1	Screw Conveyor	LSJ-165		1.Capacity:1-2t/h 2.Power:1.5kw 3.Length:4M 4.Conveying materials to mixer automatically
2	Self-priming Grinder	YSG-50		1.Capacity:1-1.5t/h 2.Power:15kw 3.Hammers quantity:16 pcs (tungsten carbide welding) 4.Grinding materials into powder 5.Finished powder size:5-8mm
3	Feed Mixer	YSHJ-250		1.Power:5.5 kw 2.Capacity:250kg/batch (6 batches per hour) 3.Mixing different raw materials evenly
4	Screw Conveyor	LSJ-165		1.Capacity:1-2t/h 2.Power:1.5kw 3.Length:6M 4.Conveying raw materials to the silo automatically
5	Materials Silo	1m³		Storage materials before making pellets
6	Feed Pellet Machine	YHKJ-250		1.Power:22+1.5kw 2.Capacity:1-1.5t/h 3.Pellet size:2-6mm 4.Include frequency feeder 5.Makingchicken,duck,pig,rabbit, fish etc.feed pellets
7	Electrical Control Cabinet			1.Control equipment electricity 2. Total Power:47kw Voltage :220v/380V/415V/440v 3.DELIXI electricity components

After-sales Service
We provide 24/7 after-sales service to our customers, including technical support, on-site installation and training, maintenance, and repair.
Common Problems and Solutions in the Use of Pellet Production Line
1. Clogging of the die: The solution is to reduce the amount of raw materials, adjust the moisture content, and clean the die regularly.
2. Uneven pellet size: The solution is to adjust the distance between the rollers and the die, and to ensure that the raw materials are uniformly mixed.
3. Low output: The solution is to check the wear of the die, the rollers, and other parts, adjust the pressure of the machine, and replace the worn parts.
Advantages of our Factory
1. Professional and experienced team
2. Advanced technology and equipment
3. High-quality products and efficient services
4. Reasonable prices and timely delivery
5. Strong R&D capability and continuous innovation
Conclusion
Pellet machine production line is an efficient and environmentally friendly way to produce pellets. The Flat Die Pellet Machine Production Line is widely used in small-scale pellet production due to its simplicity and easy operation. The Feed Pellet Machine Line is widely used in animal feed production. Our factory provides high-quality products and services to our customers and continuously innovates to improve our products and processes.
