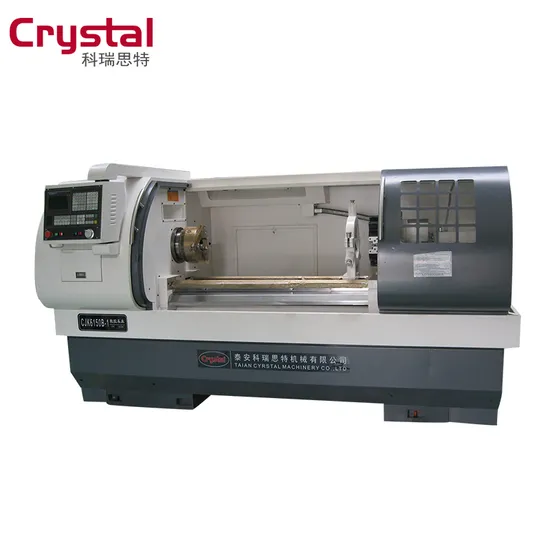

Best Price CNC Lathe Machine Low Cost Lathe Cjk6150b
| US$12,150.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CJK6150B-1
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
CNC System
GSK,Siemens
Spindle Bore
82mm
Max.Length of Work Piece
1000mm
Range of Spindle Speed
100-2500rpm
Taper of Spindle Bore
Mt5
Max. Swim Over Bed
500mm
Stations of Tool Carrier
4
Motor Power
5.5kw
Packing Size (mm)
2400*1400*1740mm
Net Weight
2700kg
Transport Package
Standard Wood Packing
Specification
CE
Trademark
Crystal
Origin
Taian City, Shandong Province, China
HS Code
8458110090
Production Capacity
30sets/Month
Product Description
The currency exchange rate fluctuates greatly, please consult customer service for the best price.Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards. Features:
1. High frequency quenching rail, hardness and high wear resistance
2. 3-gear spindle speed, step-less in gear
3. Spindle with high speed and high precision bearings
4. Increase the spindle diameter to φ82mm, chuck diameter φ250mm
Specifications:
| Item | CJK6150B-1 |
| Max. Swing over bed | Φ500mm |
| Max. Swing over cross slide | Φ280mm |
| Processing length | 750mm/1000mm/1500mm |
| Width of the bed | 400mm |
| Diameter of spindle bore | Φ82mm |
| Spindle taper | 1:20/Φ90 |
| Spindle nose | Type of spindle head D-8 |
| Spindle speed | 30-150,100-500,320-1600rpm |
| Chuck size | 250mm |
| Tool holder | 4 station |
| Tool bar section | 25X25mm |
| Main motor power | 7.5KW |
| X/Z axis position accuracy | 0.02/0.025mm |
| X/Z axis repeatability | 0.01/0.012mm |
| X/Z axis torque | 6/10N.M |
| X/Z axis travel | X 360 Z 750mm/1000mm/1500mm |
| X/Z axis fast feeding speed | 8/10 M/MIN |
| Tailstock sleeve travel | 150mm |
| Tailstock taper | MT5 |
| Dimension | 2410/2660/3160*1560*1730mm |
| Weight | 2900/3300/3600kg |
| Lathe bed structure type | Split casting type/Overall casting type |
Details:
1.Guide width: 390mm
2.Spindle bore: 82mm
3.4-position electrical tool carrier/turret/post
4.Spindle speed: auto 3 -steps speed change by one handle, stepless speed change in the step (range of spindle speed: 20-100,100-550,400-1600rpm)
5.X/Z axis servo drive
6.CNC system: GSK980TB2
7.Motor power: 7.5KW
8.Automatic electronic pump lubrication
9.Semi-enclosed protection
10.Manual chuck,manual tailstock
Optional Configuration :
1.Siemens system /Fanuc system
2.Hydraulic chuck/ pneumatic chuck
3.Hydraulic tailstock/ pneumatic tailstock
4.6-piece electric tool post/8- piece electric tool post/ Gang type tool
5.Auto bar feeder
