Temperature Detection Hot Spot Alarm Thermal Imaging Camera

Product Description

Product Description

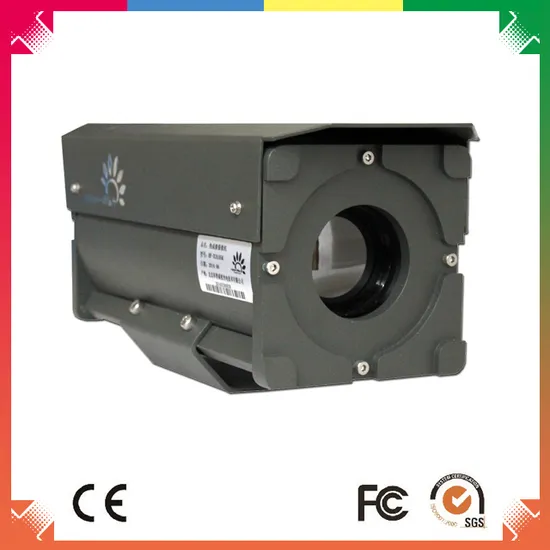

Temperature detection hot spot alarm thermal imaging camera (IP68)
Feature More exactly temperature measurement, digital thermometer, thermal image is based on the original data processing, separation between front-end temperature measurement techniques and thermal video. Thermal and 2 megapixel HD dual channel camera, output thermal image and visible image meanwhile, observe specific details. UFPA detector, small size, longer using life, lower power consumption, work more stable than normal uncooled detector. The latest generation of MEMS technology, NETD: 50mk, get more delicate picture. SDE, no image noise, 10 pseudo colors. 10 target sub regions, independently detection and alarm thresholds, return the max temperature, min temperature and location from front end Special temperature alarm technology, eliminates false report due to the temperature difference outdoor and weather changes. style design, one integral aluminum alloy housing and sealed with nitrogen, IP66 weatherproof, enable the camera works well in severe weather conditions. 10. IP network design, video, alarm data, location data transmission via one network cable.

Model	KTC4101	KTC4102	KTC4101-EP	KTC41022
FOV	43.6°*32.7°	27°*20.2°	43.6°*32.7°	27°*20.2°
Thermal sensor	5th generation UFPA
Resolution	384*288 pixel(640*512 optional)
Spectral response	7.5~14μm
NETD	50mK(@25ºC F1.0)
Thermal lens	10mm F1.0	20mm F1.0	10mm F1.0	20mm F1.0
Housing	1, One integral aluminum alloy housing		1,Explosion-proof housing, 304 stainless steel, One integral aluminum alloy housing, no connecting line outside
	2, IP66 ingress protection		2,ExdCT6 / DIP A20 TA,T6 certified, ALO
			3,IP68
Image processing	1. Stable operation temperature without TEC, starting time less than 4 seconds
	2. SDE digital image processing
	3. 10 pseudo color and B/W, B/W conversion
	4. 2X digital amplification
Temperature accuracy	1. Temperature accuracy: ±2ºC or ±2% of reading, take the maximum
	2. Temperature range: -20ºC-120ºC(650ºC optional)
	3. Adjustable parameters, include temperature correction, emissivity, atomospheric transimissivity, humidity
Temperature model	1. Support high, low and average temperature tracking, point, line and rectangular detection; multi addable detection targets
	2. Each road can be set up to 10 alarm region, independent threshold value and sampling cycle setting, independent curve chart
	3. Fixed point monitoring, multi areas addable.
Overheat alarm	1. 6 kinds of alarm algorithm, maximum, minimum, average, middle position absolute threshold and airspace relative, time domain, relative value alarm temperature mutations
	2. Sound, light alarm. Presets a linkage visible light camera ptz automatic observation target. Reserved switch alarm output, manual/automatic fire extinguishing system and the broadcasting system
Alarm log	1. Real-time record each object temperature data, automatically generate trend curve.
	2. Can automatic storage temperature when trigger the alarm data, snapshot images and videos, establish and record the related logs, video storage, real-time playback
Interface	1. One RJ45 network interface (including video and temperature data), one switch alarm output (linkage acousto-optic alarm, start, fire control system)
	2. AC24V/DC24V
	3. Waterproof aviation connector
Environment parameters	1. Operational temp.: -25ºC~55ºC(-45ºC optional)
	2. Power consumption: common 10W, peak 20W
