Cassman 1000L Stainless Steel Beer Conical Fermentation Tank for Brasserie

Product Description

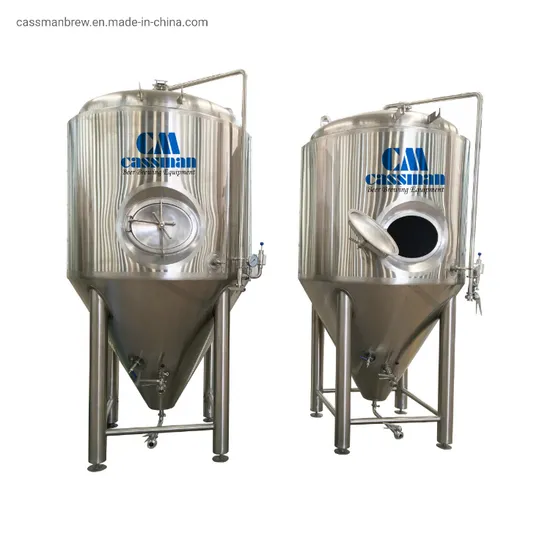

Cassman 1000L Stainless Steel Beer Conical Fermentation Tank for Brasserie
Fermenter Detailed Specifications
Interior thickness=3mm Exterior thickness=2mm
100% TIG welding with pure argon gas shield
Interior tank: Pickling passivation+Exterior Oil brushed finish 2B
Insulation: Polyurethane, TH = 80mm
Domed top cover+ 60°cone bottom
Glycol jacket: dimpled plate on cone & side
Test pressure 3 bar, working pressure 1.5 bar
PT100 temperature sensor & digital temperature gauge
Complete butterfly valves, fittings and parts as below:
• 2pcs x Lifting ear
• 1pcs x Dry hopping
• 1pcs x PRV( Pressure release valve)
• 1pcs x Pressure gauge
• 1pcs x Spunding valve
• 1pcs x Sample valve
• 1pcs x Temperature gauge
• 1pcs x Carbonation stone
• 1pcs x Racking arm
• 1pcs x CIP spray device
• 1pcs x Drain outlet
• 2 pcs x Solenoid valve
• 4 Heavy duty legs with leveling pad
Part 1 Malt Miller System
Capacity: 100kg/h, 300kg/h, 500kg/h, 800kg/h, 1000kg/h.
Description: CE or UL listed Motor, Double roller, distance adjustable, stainelss steel 304 material.
Optional: Flexible Auger.
Part 2 Brew House System
-Two-Four vessles or combined system.
-Capacity 100L-5000L, 1bbl-40bbl.
- Steam heated, electrical heated or natural gas
-Mash tun with mixer, steam jacket, VFD motor, insulated 80mm. Stainelsss steel 304.
-Lauter tun with rake system, milled false bottom, sparging spray ring,VFD motor, insulated 80mm.
-Boiling kettle with steam jacket, inner heated option, insulated 80mm. Stainelsss steel 304.
-Whirlpool with Tangential whirlpool inlet. insulated 80mm. Stainelsss steel 304.
-Insulated HLT and CLT with the pipelines and pumps
-External grant, hops back, heat exchanger.Wort oxygenation system, working platform.
-All the necessary pipelines and pumps.
Part 3 Fermenter&BBT System
-Capacity: 100L-30000L, 1bbl-100bbl, +25% Head space
-Interior shell thickness 3-6mm, Exterior shell=2mm
-100% TIG welding with pure argon gas shield
-Interior finish: pickled and passivated, external polished, 80mm insulated
-Test pressure 3 bar, working pressure 1.5 bar
-Glycol zones (Both on side and concial/bottom)
-60°conical bottom for Fermener, Shadow less side man way
-Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top
-Mechanical relief valve 3 bar on CIP arm with pressure gauge
-Adjustable tank leveling pads
Part 4 Cooling System
Description: Air type chiller + Ice water tank or Glycol tank
Capacity: 3HP, 5HP, 7HP, 10HP, 15HP, 20HP, 30HP+ 500L-20000L tank
Brand: Copeland, SANYO. Part 5 Control System
-PID or PLC system
-SIEMENS program S7-200, Siemens touch screen.
-Penumatic valves for optional
Part7 Packge and Shipping
Part 8 Our Certification

Part 9 Company Profile
Cassman is the leading Microbrewery equipment supplier in China, our service include the brewery design, equipment manufacture, Installation at site and brewing technology transfer.
We provide complete beer brewing solutions that include: malt handling system, brew house system, beer fermenting/storage system, cooling system, cleaning system, control system, package line.
Established in 2010, Cassman brewing equipment has been exported to more than 20 countries, which include USA, Canada, Australia, Japan, UK, France, Germany, Denmark etc.
