KGS615SD-600X1500mm Precision Surface Grinding Machine

Product Description

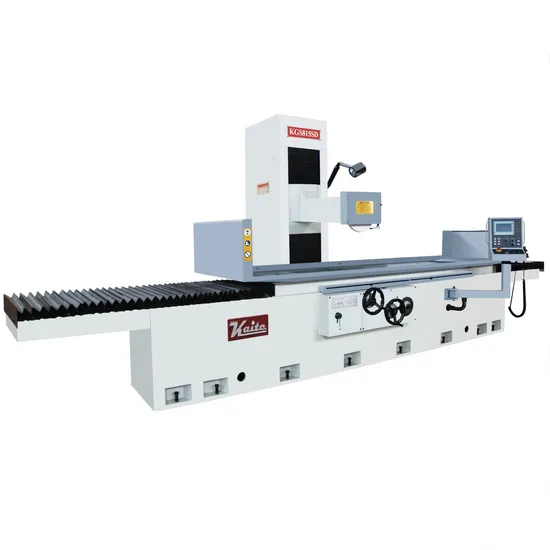

1. Picture
KGS SD - PLC control system with touchscreen and servo drive for vertical spindle feed with ability of programming full grinding operation - rough grinding, fine grinding and spark out. Minimal automatic
vertical feed reaching 0,001mm makes this type of machines suitable for very precise grinding operations.
2. Parameters

Parameters		Unit	KGS615SD
Working Surface of Table		mm	600×1500(24"×60")
Max.Table Travel		mm	1600
Max.Cross Travel		mm	650
Distance Between Table Surface and Spindle Center		mm	600
Max.Table Load		kgs	800
T-Solt(Number×Width)		mm	3×16
Table Speed		m/min	5~25
Crossfeed Handwheel	1gard	mm	0.02
	1 rev		5
Automatic Crossfeed of Saddle		mm	0.5~12
Power Cross Feed	50HZ	mm/min	1250
	60HZ		1500
Grinding Wheel Dimensions		mm	355×50×127
Spindle Speed	50HZ	rpm	1450
	60HZ		1740
Vertical Handwheel	1gard	mm	0.001
	1 rev		0.1
Automatic Down Feed Rate		mm	0.001~1
Power Head Increment		mm/min	210
Spindle Motor		kw	7.5
Vertical Motor		w	1500
Hydraulic Motor		kw	5.5
Dust Collection Motor		w	550
Coolant Motor		w	90
Crossfeed Motor		w	370
Floor Space		mm	5810×2445
Packing Dimensions		mm	5800×2260×2250
Net Weight		kgs	7250
Gross Weight		kgs	8250

3. Main Configuration of Grinding Machine
1. Spindle motor: ABB brand.
2. Spindle bearing: NSK brand P4 grade precision ball bearing which from Japan.
3. Cross screw: P5 grade precision ball screw.
4. Main electrical components: SIEMENS brand.
5. Main hydraulic components: brand from TAIWAN.
6. Touch screen components: SIEMENS brand.
7. PLC electrical control components: SIEMENS brand.
8. Servo motor and drive: SIEMENS brand.
4. Standard Accessories

1	Grinding wheel	2	Wheel flange
3	Wheel balancing base	4	Wheel balancing arbor
5	Extractor	6	Diamond dresser
7	Leveling pad	8	Anchor bolt
9	Tool box with tools	10	Electric magnetic chuck
11	Cooling system	12	Working light

5. Optional Accessories

Serial No.	Name of Article
1	rear splash guard
2	overhead parallel dresser
3	hydraulic tank oil cooling
4	cooling & suction device
5	magnetic separator
6	cooling magnetic paper filter
Note	5 and 6, select one just OK.

6. Feature
1. Well designed cast iron structure provides excellent dampening
2. Flange mount spindle cartridge for superior side grinding rigidity
3. Grinding spindle features low-maintenance preloaded high precision angular ball
bearings(NSK P4 grade)
4. "V" and flat type guide way which precision hand scrapped turcite saddle ways for smooth and long lasting performance
5. Table guideways are hardened, ground and counter-laminated with PTFE(TEFLON) to ensure high wear-resistance
6. Centralized automatic lubrication system ,supplies oil to guide-ways and lead-screws as the machine operates. This system ensures all the critical components are lubricated with the right amount of oil at all times
7. Separate hydraulic tank prevents heat and vibrations from being transferred to the machine
8. Electric components and functional modules are well arranged and packed in the electric cabinet, making maintenance and trouble-shooting easily accessible
9. Magnetic force can be adjusted
10. Safety 24V control circuit power
