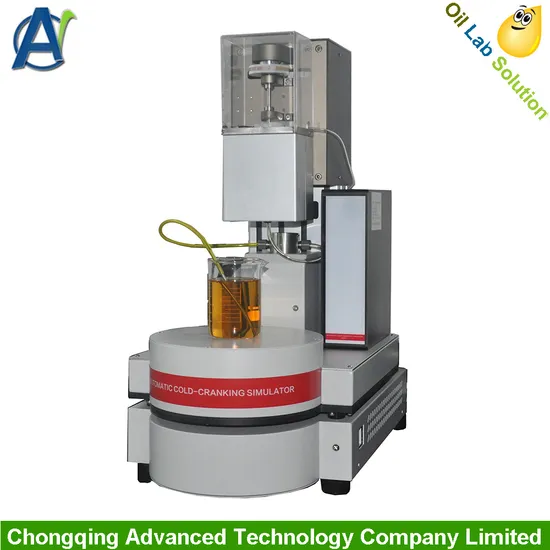

Auto-Sampling Cold Cranking Simulator (CCS Test Machine) by ASTM D5293 and ASTM D2602

Product Description

Introduction:
Auto Cold Cranking Simulator Test Machine is used to measure the apparent viscosity of engine oil at low temperature (- 35 ºC ~ - 5 ºC).
Method summary: Drive a rotor closely matched with the stator by a DC motor, and fill the gap between the rotor and the stator with samples. The temperature is controlled by the temperature control system, and the motor speed is corrected with standard oil to make it a function of viscosity. Determine the sample viscosity by measuring the rotation speed.
The rotor and stator system of the instrument uses a thermoelectric temperature control system. Compared with the previous model, the temperature control is improved, the preheating time is reduced, and the measurement accuracy is improved. The compact structure is easy to install and use.
Features: 1. Automatically detect speed and control current, reduce human error; 2. The CCS test machine is driven by imported motor, high precision; 3. Semiconductor refrigeration system can quickly test any temperature; 4. The result is automatically calculated after calibration by standard oil; 5. Computer control, Windows operating system, XP, Win7, can be connected to a printer to print results; 6. Improved rotor, low torque test state, high repeatability; 7. Automatically generate calibration curve and directly display the test viscosity result; 8. All test processes are controlled automatically without manual operation, and the test will automatically stop and increase temperature after the test; 9. The CCS Cold Cranking Simulator test machine automatically recommends the refrigeration temperature; 10. Rotary encoder detects speed; 11. Viscosity measurement range: 1500~15000CP; 12. The results of 20 standard oils can be edited; 13. This Auto Cold Cranking Simulator is equipped with dedicated low-temperature refrigeration cycle equipment; 14. The Apparent viscosity tester can automatically calculate the standard oil calibration deviation to help users check the accuracy of the calibration data; 15. Patent of Cold Cranking Simulator using semiconductor refrigeration, patent number: ZL201822076893.4 16. Patent of lubricating oil apparent viscosity tester with automatic sampling and automatic cleaning structure, patent number: ZL201822076944.3.

Specifications of Auto Cold Cranking Simulator:

1	Reference standard	GB/T6538, ASTM D2602,ASTM D5293
2	Refrigeration method	Semi-conductor
3	Circulation method	multifunctional plastic steel pump
4	Temp.controlling method	Digital PID temperature controller
5	Detection method	Automatic injection,automatic cleaning,automatic testing
6	Data processing	Automatic storage
7	Temp.controlling range	-5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC
8	Power supply	AC220 V 50Hz
9	Power consumption	1000W
10	Dimension	780*560*960mm3
11	Weight	40KG

Factory overview
Customer Feedback
Germany
USA
Package
FAQ
1.What's the delivery time?
About 40 days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
