100ml 200ml 500ml Water Bottle Blow Molding Machine

US$41,300.00 1 Piece (MOQ)

Basic Info.

Model NO.

JS-3000

Making Method of Parison

Stretch Blow

Automation

Automatic

Computerized

Certification

Bottle Liter

0.2-0.7L

Machine Cavity

Machine Output

2700-3000PCS/H

Application

Bottle

Transport Package

Wooden Box

Specification

SGS, CE

Trademark

Origin

Huangyan Taizhou Zhejiang

HS Code

84773090

Production Capacity

2700-3000PCS/H

Product Description

0.1-0.7L 3cavities Fully Automatic Small Bottle High Speed Blow Molding Machine
MACHINE PROPERTIES:
1. FEATURES TOUCH SCREEN COMPUTER OF TAIWAN'S WEILUN , OPERATE CONSISTENTLY AND SIMPTY .
2.FEATURES PNEUMATIC ELEMENTS OF GERMAN FESTO AND JAPAN SMC.
3.SPECIALLY DESIGNED FOR ENERGY-SAVING PURPOSE , MECHANICAL UNIT IS COMPACT AND SOUND.
4.FEATERES TROUBLW ALERT AND DIAGNOSTIC UNITES TO ALLOW EASY MAINTENANCE.
5.ENVIRONMENTALLY FRIENDLY DESIGN, NONTOXIC CONVEYOR BELT TO CARRY PREFORMS .

		JS-2000	JS-3000	JS-4000	JS-6000	JS-1000	JS-2000C	JSX-2000	JS-3000B
Production capacity	BPH	1800-2200	2700-3000	3300-4000	5600-6000	1000-1200	1000-1200	2000-2300	1800-2400
Number of Cavity	/	2	3	4	6	1	2	2	3
Clamping force	kN	180	180	350	350	120	450	160	550
Mould opening stroke	mm	200	200	200	200	110	260		260
Stretch stroke	mm	350	280	350	280	350	430	280	350
Max. Container Volume	liters	2	0.7	2	0.7	1.5	10	0.7	5
Max. Neck Size	mm	40	40	40	35	50	50	40	50
Max. Bottle diameter	mm	110	70	105	70	95	210	70	180
Max. Bopttle height	mm	350	280	350	270	350	430	280	350
Installed Power	kW	41	31	68	52	17	44	25	64
Max. Heating Power	kW	40	30	64	48	16	40	24	60
Operating Air Pressure	Kg/cm²	8	8	8	8	8	8	8	8
Operating Air Consumption	liters/min	1500	1500	3000	3000	700	2000	1300	2000
Blowing Air Pressure	KG/cm²	35	35	35	35	30	30-35	30	30-35
Blowing Air Consumption	liters/min	2000	1800	3800	2800	1000	8000	1500	7000
Cooling water Pressure	Kg/cm²	,4-5	,4-5	,4-5	,4-5	4-5	4-5	4-5	,4-5
Cooling water Temperature	°C	.10-20	.10-20	.10-20	.10-20	10-20	10-20	10-20	.10-20
Cooling water Flow	liters/min	100	100	100	100	100	100	100	100
Measurement (L x W x H)	m	2.6X2.2X2	2.6X2.2X2	3.85X2.3X2	3.85X2.3X2.2		2.6X2.25X2.4	2.5X1.9X2.2	3.2x2.25 x2.4
Weight	Ton	3	3	4.2	4.2	1.8	3.5	2.3	4.5

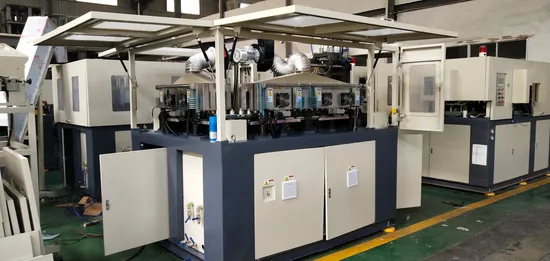

Internal details of the Machine
