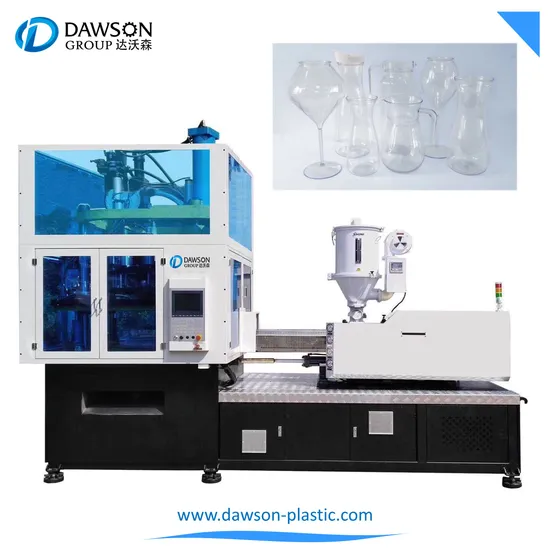

High Quality Plastic Tumbler Pet Bottle Injection Blow Molding Machine

High Quality Plastic Tumbler Pet Bottle Injection Blow Molding Machine

US$56,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
ISB 1100N-3
Plastic Type
Pet
Plasticizing Way
Pet Injection Stretch Blow Molding
Clamping Way
Injection Stretch Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Screw Diameter
50mm
Screw L/D Ratio
20.5:1 L/D
Screw Speed
0-190 R/Min
Theoretical Injection Capacity
238cm3
Injection Pressure
174MPa
Max.Hydraulic Pressure
140kg/Cm
The Actual Injection Quantity
225g(PS)/8oz
Screw Stroke
190mm
Blow Clamping Force
150kn
Clamp Tonnage
600kn
Wheel Diameter
1100mm
Max. Height
220mm
Open Vertical Mode Trip
570mm
Max.Pump Pressure
16MPa
Servo Motor
22kw
Transport Package
Film Packing
Specification
ISB 1100N-3
Trademark
DAWSON
Origin
Jiangsu Zhangjiagang
HS Code
8477301000
Production Capacity
as Per Samples

Product Description

DAWSON MACHINERY & MOULD GROUP Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
One step PET Injection Stretch Blow Molding Machine
One step PET Injection Stretch Blow Molding Machine

No.
 Configurations Name
 Brand Name
1
 Oil Pump and Servo Motor(Double hydraulic system)
 Eckerle (Germany) and Inovance
2
 Hydraulic Valve
 Yuken, TAIWAN
3
 Sealing Parts
 SealTech, China
4
 F.R.L
 China
5
 Air Valve
 AirTAC
6
 Air Cylinder
 AirTAC
7
 Controller (PC)
 JASU, Taiwan
8
 Servo Motor for Turntable
 Inovance,China
9
 Gear Reducer
 SESAME, Taiwan
10
 Low-voltage components
 Joint Venture
