Small Manufature Multi Rolls Packing Machine Toilet Tissue Paper Machine

Product Description

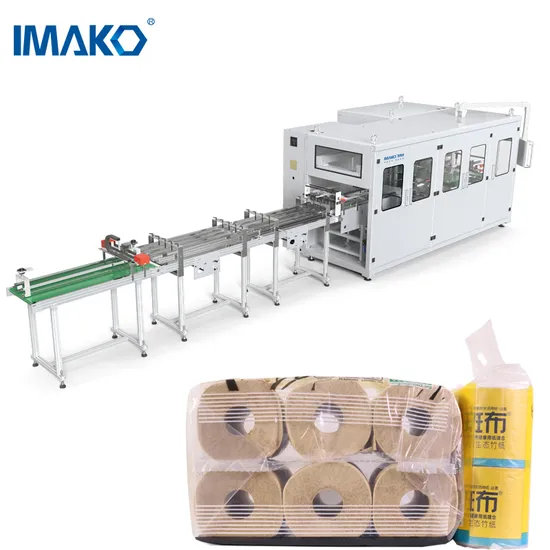

Automatic Packaging Machine for Toilet Paper Roll (Bundle Pack) Product Description MAIN FEATURE:
★TP-B30RE series automatic roll paper bundle packing machine is suitable for automatic bundle packing single packed/unpack core/coreless roll paper.
★Adopts servos control for tissue arrangement, counting, filling preparation, tissue fill to bag, bag catching, bag conveying. This machine is easy to operation and maintenance.
★Adopts central vacuum management mode, can efficiency lower power consumption.
★Adopts intelligent sealing system, alternating current control, up & down independent temperature control, can meet different kinds of packaging materials, ensure nice sealing and stably running.
★Equipped with functions of waste bag free stop automatic rejection, air source management, fault alarm and display, servo overload protection.
Features Central vacuum supply is adopted for efficient reduction of power consumption; Intelligent heat sealing system, can accommodate various packaging materials while offering good sealing effect and high stability; Designed with various functions like automatic rejection of unopened bags, air source management, fault alarm and display, servo overload protection; Product Parameters TP-B30REM Toilet roll paper muti-functional bundling machine Tech. Doc.

Basic parameter & feature	Description	Note
Paper Suitable Range	Single with core or coreless, unpacked toilet roll paper	Horizontal/Vertical
Infeed Mode	Fully auto double/ three smart feeding system	Front line is equiped 1 to 1 or 2 to 3 distributor
Feeding Speed	The fastest feeding speed 200packs/min
Single Sngle Size Range	Diameter 80 mm to 130 mm/Height 80mm to 130 mm	Single size error±2mm, Single pack size under control within the suitable range
Paper Array Mode (Layer X Lane X Row)	(1-3)x(2-3)x(4-6)
Paper Array Range	80mm to 360mm	1-3 layer height,size error±5mm
	160mm to 360mm	2-3 lane width,size error±5mm
	320mm to 690mm	4-6row Length,size error±10mm (The longest length 690mm, say115X6)
Design Work Speed	22 packs/min	Refer to packing size and the speed.
Stable Work Speed	20 packs/min
Bundling Bag	Singe Pre-bag with handle,≥0.05mmPE film	Detail see bag design standard
Installation Unit of Bundling Bag	Dual Storage Racks
Bundling Bag Storage QTY	≤ 600 pcs bundling bag
Bundling Bag Sealing Method	Heat Tube Sealing Mouth
Sealing Insert	Mechanical Insert and Mould Combination Mode
Equipment Size, Weight, Power	According to the last design
Electric Control	MITSUBISHI
Pneumatic Brand	FESTO
Compressed Air	Pressure≥ 0.6 MPA	Buyer provide
Driving Force Power	380V/50HZ	Suitable voltage range +/-10%
I/O Input,Output (VDC)	24VDC	Electric system control circuit input,Output
Machine Driving control mode	Servo/Inverter /Cylinder Positioning control
Complete Machine Tech. Design & Color	The machine frame is adopted carbon steel bend plate and organic glass door. Spraying creamy white paint for the whole machine

Company Profile IMAKO is a professional designer and manufacture, specialized in household paper conveying, feeding, distributing,single wrapping, multi packing,box packing and palletizing. IMAKO supports new product design, research & development, component procurement, manufacturing & assembly, sales promotion, and after-sales technical services, which can provide comprehensive solutions for the complete product supply chain.
Our Full Automatic Packing Line is suitable for Solo Wrapper, Bundler, Case Packer and robot palletizer for Toilet Rolls, Kitchen Towel Rolls, Facial Tissue, Napkin , Hand Towel , Handkerchief, Pocket Tissue and Other Household Paper.
IMAKO has been dedicated to sanitary tissue packaging machinery industry for years, and has accumulated much experience. Value-added service to our client is our sole goal, mutual benefit is our base for development, solution is our answer to project.
IMAKO power comes from three aspects:
A professional team with rich practical experience in serving customers in the tissue industry for many years!
Provide customers with continuous and stable technical support and assistance!
Always adhere to a strong, innovative and leading corporate culture!
Nothing is the best but can be better and better. Choose our products to give you the best experience!
After Sales Service

Paymentterm:T/T,L/C

Delivery: . Within 30 days of Off Season , within 50 days of peak season upon receiving deposit

After service: Seller would repair or replace the damaged parts free of charge caused by the machine poor design or manufacturing defects within this period.Guarantee period is not applicable for the consumables and once damaged, buyer can purchase the consumables from the seller at reasonable prices. We would systematically train your engineers about the operation, maintenance and supervision and share the knowledge and experience regarding the machine operation and maintenance by fax or at each visit. If buyer need our technician to fix the machine abroad,buyer shall be responsible for all costs of service like airtickets,accommodation and local transportation. Besides buyer need paid for the technician USD50/person/day as salary when our Technician going to your country.

FAQ

Q 1. How long is your Warranty?

A: All of our machines have one year's warranty.

Q 2. What's the payment terms?

A: 30% down payment when placing your order, 70% balance payment before shipment.

Q 3. How to Guarantee transaction security?

A: Before delivery, we will send the pictures and videos to you to check the quality. Or you could arrange checking on your own. Also license and certificate could be provided for checking.

Q4: What technical support can I get during the transaction?

A: We offer online technical support at any time you want. Instructional videos, the way of daily commissioning and maintenance also wil be provided. If you need installation service, our technicians can go abroad but this is not free. During warranty you could replace the failed parts for free.

Q5:How could i contact you if any problem there?

A: Send us email or leave us message, we will contact you as soon as possible.
