3600*1600 CNC Ceramic Rock Plate Slab Tiles Cutting Machine Glass Processing Machine Custom Color OEM Sintered Stone Processing Machinery

Product Description

Product Description

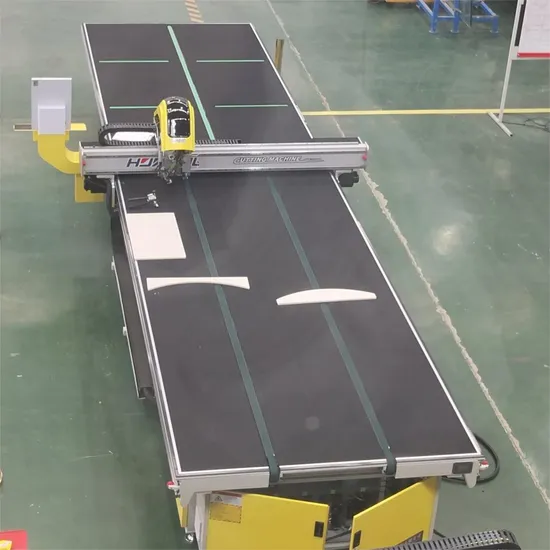

Sintered Stone CNC Cutting Machine Stone Processing machine The machine is made of waterproof, fireproof, high and low temperature resistant, and anticorrosive materials, which will never be deformed; Air flotation function, improve work efficiency, with automatic feeding machine and separator;

Detailed Photos
High-definition industrial explosion-proof screen, aluminum alloy profile shell, explosion-proof, dust-proof,
ultra-long service life and ultra-wide viewing angle.
The large-scale milling machine processes the mounting surface to ensure the verticality and straightness of the mounting surface and improve accuracy.
The machine head is beautiful and elegant, and the color can be customized
Specially developed 6mm thick 6061 high-strength pre-stressed industrial aluminum beams to ensure the
service life and load-bearing capacity of the aluminum beams.
Product Parameters

Machine parameters	Dimensions(L*W*H)	4300*2500*1400 mm
	Weight	1200kg
	Table height	880±30mm(Adjustable feet)
	Power requirements	380V,50Hz
	Installed power	10.5kW
	Compressed air	0.6Mpa

Processing parameters	Cut Sintered Stone size	MAX.3600*1600mm
	Cut Sintered Stone thickness	3~15mm
	Head beam speed	X axis 0 ~ 200m / min (can be set)
	Head speed	Y axis 0 ~ 200m / min (can be set)
	Cutting acceleration	≥8m/s²
	Cutting knife seat	Cutting head can rotate 360 degrees (precise cutting of straight lines and special shapes)
	Cutting accuracy	≤±0.25mm/m(Based on the size of the cutting line before the glass breaking)

Packaging & Shipping
Company Profile
Shandong Huashil Automation Technology Co., LTD., is a set of mechanical equipment automation research
and development, manufacturing, sales in one of the high-tech manufacturing enterprises,mainly research
and development production of a full set of glass deep processing intelligent equipment,such as the glass
loading and cutting machine,glass cutting line,glass shuttle warehouse intelligent chip trimming
system,glass edging machine,glass double-sided edging machine and so on.
We have wealth mechanical automation equipment production experience, production capacity, technological level and comprehensive economic strength in the same industry in the forefront of the domestic industry, intelligent automation
equipment research and development, material control, equipment performance and modeling has been in the domestic
leading level, a number of techniques. have filled the domestic blank. The good after - sales service and reasonable price,
for a long time to win the customer's praise. In line with the principle of "good faith first, customer satisfaction",
our company has established long-term cooperative relations with many enterprises.

FAQ
1.Who are we?Huashil is a design and fabrication oriented company for Flat Glass Deep processing technology. We are based on Shandong, China.2.When can we arrange shipment?We usually arrange shipment within 30 days after getting deposit, but customized machines should be between 60~100 days.3.How to provide after-sales service? Free warranty for one year. Provide remote services and video guidance.4.What operating language is the machine?Standard English, can also be changed as required 5.How to operate the machine ? We will deliver English manual and video with the machine to you. If you still need our help, please contact us for engineer dispatching.
