Textile Fabric Martindale Abrasion and Pilling Tester

Product Description

Product Description

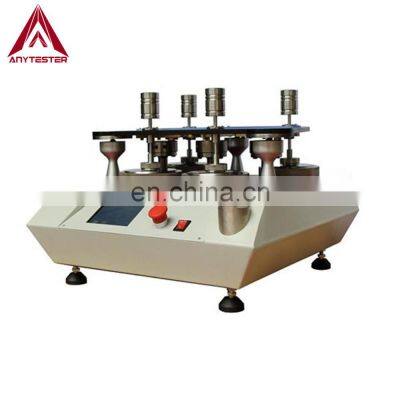

Product DescriptionHY0401 Martindale Abrasion and Pilling Tester is used to determine the abrasion and pilling resistance of all kinds of textile by Martindale method. The circular test specimens are rubbed against the friction surface comprising known abradents at a defined force in the form of a Lissajous figure.StandardASTM D4966, D 4970, D 3866ISO 12945-2, ISO 12947.1, ISO17076-2, ISO 26082-1BS 5690, BS3424DIN 53863, DIN 53865JIS L1096GB/T4802.2, GB/T21196FZ/T20020IWS Tm196/ TM112Note: For more standards, please contact usSpecificationModelHY0401-4Working position4 Specimen diameterФ140mm (for pilling test) Ф38mm (for abrasion test)Abrading table diameterФ120mm Effective diameter of abraderA type(1.96N): Φ28.65±0.05mmB type(1.52N): Φ90 ±0.10mm weights Abrasion testSpecimen holder: 200g±1g Loading piece: 395g±2g, 594g±2g Pilling testSpecimen holder: 155g±1g Stainless steel disc: 260g±1gTest speed50r±2r/minloading pressure weight for specimen mounting 2385g±10 gCounting range0~999999times, settablePower supplyAC220V±5%, 50Hz, 500wDimensions885×600×410mmWeight110kgDetails & Features★ 4 working positions to test 4 specimens at the same time;★ Microcomputer control, large color touch screen operation;★ With two test method, small and large standard Lissajous curve, small Lissajous mode for pilling test, large Lissajous mode for abrasion test;★ Load pieces and key components made of stainless steel, nice and durable;★ Guide plate made of special aluminum alloy to ensure long time operation without deformation;★ Can preset several running program and several counting mode (increment and decrement)★ each working position Independent cumulative countOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
