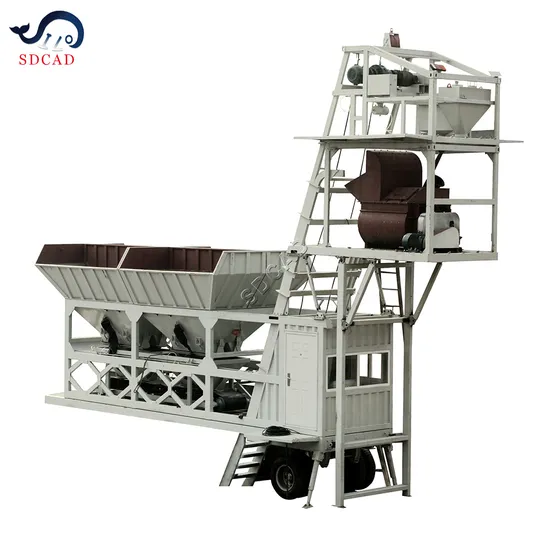

Sdcad Fixed Type Concrete Mixing Plant No Foundation Quick Installation 50m3/H Dry Concrete Plant
Basic Info.
Model NO.
HZS150
Type
Concrete Mixing Plant
Shotcrete Type
Dry
Machining Process
Welded Molding Machine
Structure
Rotor Type
Productivity
240m²/h
Feeding Height
1390mm
Vibrating Amplitude
2.2mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Accordingly
Name
Hzs Series Concrete Batching Plant
Flow Area
26m*12m
Total Power
100kw
Weight
46t
Mixer
Js1000
Aggregate Batching Machine
3*8m3
Capacity
50m3/H
Discharging Height
3.8 Meter
Control System
Full Automatic Control
Delivery
2*40hq
After Sales Service
1 Year
Other Capacity
25-320m3/H
Other Model
Mobile Concrete Bathing Plant
Other Model 2
Dry Concrete Bathing Plant
Other Model 3
Transit Mixed Concrete Bathing Plant
Transport Package
Laminated Packaging
Specification
accordingly
Trademark
SDCAD
Origin
China
HS Code
8474900000
Production Capacity
100sets/Month
Product Description
| Product Overview |
| Concrete Batching Plant |
| It is equipment that combines various ingredients to form concrete. Some of these inputs include water, air, admixtures, sand,aggregate, fly ash, silica fume, slag, and cement. It consists of batching system, mixer and electric control system, belt conveyor etc, which is professional equipment for ready mix concrete production, such as plasticity/dry concrete. SDCADI concrete mixing plant is widely used in small and medium construction products, road, bridge project, and concrete prefabrication factory. |
| FEATURES AT A GLANCE |
Model: HZS25 ~ HZS240
Capacity: 25~ 240 m³/h
Discharge Size :500~4000L
Provide technical support 24 hours.
Engineers to guide the installation and operation
Customized Solution is the Core concepts of SDCADI
| Product display |
Twin shaft concrete mixer .productivity performance can save about 15% mixing time and 20% production energy consumption. Powder silo, storage silo for bulk material,cement, fly ash, etc.100t/200t/300/ customized. PLD batching plant,Automatic batching equipment equipped with the mixer.finish automatically the batching process of sand,stone,cement etc. Automatic Control System,it is control the whole operation and shows their working situation.Bosure control system Siemens/Toledo customized parts for your choice. Belt Conveyor,By conveying dry particles from top to bottom.Energy savingno noise mainte nance-free and accurate measurement. |
| Design scheme diagram |
| PRODUCT SPECIFICATIONS |
| Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS150 | HZS180 |
| Discharging Capacity (L) | 500 | 750 | 1000 | 1000 | 1500 | 1500 | 2000 | 2500 | 3000 |
| Charging Capacity(L) | 800 | 1200 | 1600 | 1600 | 2400 | 2400 | 3200 | 4000 | 4800 |
| Maximum Productivity(m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 150 | 180 |
| Standard Discharging Height(m) | 1.5~3.8 | 2~4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 3.8~4.5 | 4.5 | 4.5 |
| Number of Species of Aggregate | 2~3 | 2~3 | 3~4 | 3~4 | 3~4 | 4 | 4 | 4 | 4 |
| Maximum Aggregate Size(mm) | ≤60mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤120mm | ≤150mm | ≤180mm |
| Cement/Powder Silo Capacity(set) | 1×100T | 2×100T | 3×100T | 3×100T | 3×100T | 3×100T | 4×100T or 200T | 4×200T | 4×200T |
| Mixing Cycle Time(s) | 72 | 60 | 60 | 60 | 60 | 60 | 60 | 30 | 30 |
| Total Installed Capacity(kw) | 60 | 78.5 | 111 | 145 | 110 | 198.06 | 210 | 230 | 288 |
| Packaging & Transportation |
| Successful Project |
| HZS 35 Project in Thailand | HZS 50 Project in Kenya | HZS 60 Project in South Africa |
| HZS 120 Project in Russia | HZS 150 Project in Germany | HZS 180 Project in New Zealand |
| Twin Shafts Concrete Mixer | Dry Mix Mixer Single / Twin Shafts | Planetary Concrete Mixer |
| FAQ |
Are you a manufacturer or Trader? We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service. What is your payment term? We accept T/T, L/C at sight, Western Union, Paypal etc. How long is the validity of quotation? Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market . What is your delivery time? Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 10-30 days,It depend on the order quantity. Do you provide OEM/ODM Service? Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets. How can we ensure quality? The final inspection is always carried out before shipment. How to install the equipment after purchasing? We will provide a professional installation video to illustrate.Also provide a manual. Do you offer a guarantee? Yes, we guarantee our product for one year. Provide after-sales service support with and agricultural technical support. What is your MOQ? 1Sets |
