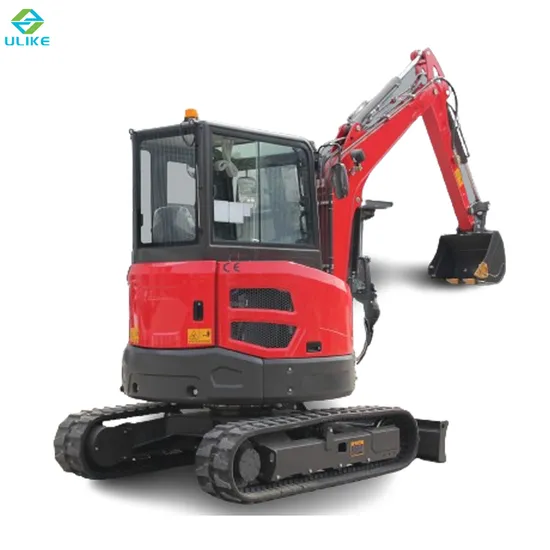

Factory Price 0.12m3 Bucket Excavator Engineering Machinery Mini Crawler Digger for Sale

Product Description

Hot Sale High Quality Engineering Machinery Crawler Excavator Product Description
A crawler excavator is a powerful construction machine equipped with tracks for stability and maneuverability, ideal for digging, lifting, and transporting materials on rough or uneven terrains.
1-Japan Kubota D1703 engine , 18.2kw/2200rpm, Euro 5,EPA4
2-China brand pump
3-China brand load sensing valves
4-China brand slewing motor
5-China brand driving motor
6-closed cabin and A/C
7-Hydraulic pilot servo operation system
8-Rubber track track :300mm (Steel track)
9-With hydraulic hammer pipeline system
10-Bucket capacity: 0.12m³
11-With dozer blade
12-with high-low speed
13-with side boom
Product Parameters

Engine	Emission Standard	Euro 5,EPA4
	Make /Model	KUBOTA /D1703
	Power /Rotation speed	18.2kw(25HP)@2200rpm
	Number of cylinder	3
	Type	In-line,water cooled, 4-stroke ,mechanical pump, normally aspirated
	Max.torque	97.4N.m/1500rpm
	Displacement	1.642L
Track Driving System	Maximum Travel speed(High/low)	4.4/2.4km/h
	Width of steel track shoe	300mm
	Carrier roller(Each side)	1
	Supporting roller(Each side)	4
Performance Parameter	Standard Bucket capacity	0.12m³
	Swing speed	12rpm
	Maximum Grade ability	58%(30°)
	Ground pressure	32Kpa
	Maximum Bucket digging force	30.4KN
	Maximum Arm digging force	18.2KN
	Hydraulic system pressure	22.5Mpa
	Machine weight	3810kg
	Boom length	2535mm
	Arm length	1400mm
	Fuel tank capacity	40L
	Hydraulic oil tank capacity	44L
	Engine oil capacity	7L
	Radiator capacity	3.8L
	Final drive	2*0.7L
Machine Size	Overall dimension (L*W*H)	4915mm*1720mm*2525mm
	Axle base(Track length on ground)	1670mm
	Length of rubber track	2154mm
	Track gauge	1420mm
	Minimum Ground clearance	295mm
	Swing radius at tail	860mm
	Swing radius at front	2538mm
	Height of blade	350mm
Working Range	Maximum Digging height	4800mm
	Maximum Dumping height	3406mm
	Maximum Digging depth	3208mm
	Maximum Vertical digging depth	2957mm
	Maximum Digging distance(working radius)	5480mm
	Maximum digging distance (on ground)	5359mm
	Minimum swing radius	2530mm
	Max.height when min.swing radius	3655mm
	Maximum Lifting height of blade	365mm
	Maximum Cutting depth of blade	385mm
	Boom swing angle(Left/Right)	55°/65°

Detailed Photos
Related Products
Company Profile
After Sales Service

Before-Sale	After-Sale
1. Airport pickup, Booking hotel.	1. Visiting the famous scenic spots in zhengzhou.
2. Visiting our company yard, Enjoying Free test drive.	2. 1-Year warranty for All the equipments
3. Different machines to compare with each other.	3. A lifetime of parts and technical support.
4. Interpreting mechanical configuration information in detailed.	4. Fast parts deliver and quick reply for any feedback .

Packaging & Shipping
Packing and Shipping
01 CONTAINER: Put the machine into container, Maybe need disassemble, cheapest freight and fast shipping ;
02 FLAT RACK: Often used to ship medium equipment,max load-bearing is 35tons.
03 BULK CARGO SHIP: Which is better for bigger equipment,no need disassemble.
04 RO - RO :The machine is driven directly into the ship and does not need to be disassembled. FAQ
1. Who are we?
Ulike industry is an international trade company established in 2006 and located in zhengzhou city, the center of china.Our company is one of the most powerful and potential commercial vehicles, used engineering equipment & construction Machinery suppliers in China, which has abundant experiences in exporting the machinery to the overseas customers. We win a high admiration and is widely trusted in Africa, Middle East, West Asia, South East and so on! The most important thing is that we have ability and would like to provide you high-quality products at competitve price all the time.
2. How can we guarantee quality?
Make contract with customer.
Accept visting our yard all the time.
According to the customers request to do certificate.
3. What is your delivery time?
A: The delivery time is within 15 working days.
4. What is the payment term?
A: Normally we accept 30% deposit by TT for production, 70% balance by TT before shipping. Also can be the terms according your requirements
Currency: USA.EURO.CNY.
5. Why choose us?
More than 15 years exporting experience with Asia, Middle East, South America and Australia all around the world. high-quality resources and channels provide the most cost-effective products, and 24 hours' service.
