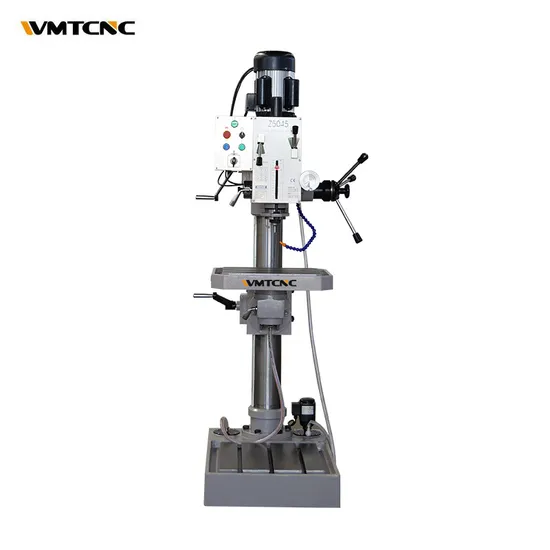

WMT pillar drill Z5045 drill machine metal vertical drilling machine

Product Description

Product Description
WMT pillar drill Z5045 drill machine metal vertical drilling machine main features:
1. Drilling, milling and tapping.
2. Headstock and worktable up and down perpendicularly.
3. Head swivels 360° horizontally.
4. Gear driven, lower noise.
5. Positive spindle lock.

Specification	Z5032 Z5040 Z5045
Max.drilling capacity	Φ32mm/Φ40mm/Φ45m
Width of T-slot	16mm
Spindle taper	MT3/MT4/R8
Spindle travel	Φ130mm
Step of spindle speed	3 steps
Range of spindle speed 50Hz	80-1250rpm
Step of spindle auto-feeding	3 steps
Min.distance from spindle axis to column	290mm
Max.distance from spindle nose to worktable	725mm
Max.distance from spindle nose to stand table	1125mm
Max.travel of headstock	Φ250mm
Swivel angle of headstock(horizontal/vertical)	360°
Diameter of column	115mm
Worktable size of avaliablity	380×300mm
Swivel angle of table horizontally	360°
Table leaned	±45°
Size of stand worktable of avaliability	417×416mm
Motor Power	1.5kw
N.w/G.w	440/490kg
Packing size(LxWxH)	820×770×1850mm

Detailed Photos
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
