67meters Long Boom Pump Hb67V Mobile Truck-Mounted Concrete Pump for Sale

Product Description

Product Description
67Meters Long Boom Pump HB67V Mobile Truck-mounted Concrete Pump for Sale
Truck-Mounted Concrete Boom Pump is a convenient and efficient dedicated construction machinery for transporting and concreting concrete, which has features of short construction period, large spreading range, low labor strength and operation in confined space. It is widely used in high-rise construction, underground construction and large concrete construction.
1. The adoption of new multi-section boom design optimized by bionic technology effectively reduces placing blind zone and better adapts to placing in high-rise and narrow space.
2. On the basis of the design concept of high rigidity structure, simulative calculation and testing of full-work-condition loading make chassis structure deformation smaller and overall work stability higher.
3. Based on laser guide, coaxial assembly makes piston head's moving track more precise, with smaller resistance and higher efficiency.
4. SCHWING Germany's hydraulic technology quintessence truly realizes fully-hydraulic reversing, in which self-adaption control in fully-hydraulic closed-loop is realized, with no need for any electrical components, more effective, steadier and zero pollution.
Parameters:
Outline dimension: 15780*2500*4000mm
Theoretical output: 170m³/h
Reach height: 66.1m
Reach depth: 48.6m
Product Parameters

Category	Item	Unit	HB67V
Overall	Outline dimension	mm	15780×2500×4000
	Overall weight	kg	53000
Chassis	Brand	/	Benz
	Model	/	Actros 5046E5
	Wheelbase	mm	2020+5180+1350+1450
	Max.power	kW	335
	Emission standard	/	China V
Pumping system	Theoretical	m³/h	170
	Concrete pumping pressure	MPa	8
	Theoretical pumping times	Times/min	21~23
Placing boom	Reach height	m	66.1
	Reach depth	m	48.6
	Slewing radius	m	60.9
Others	Transfer	/	S valve

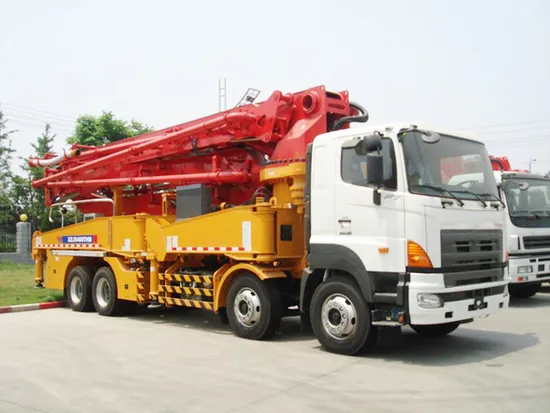

Detailed Photos
