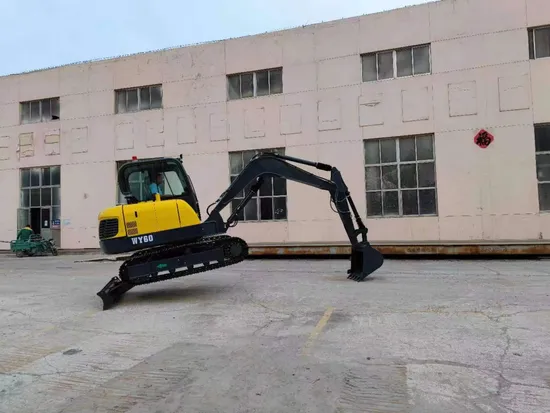

Wy60 CE EPA Approved Construction Machine Mini 5.5ton Crawler Excavator with Trenching Bucket Optional Attachments

Product Description

6-ton crawler excavator
A crawler excavator (or crawling digger) is a tracked vehicle designed to dig or grade, or move earth and large objects, and isclassified by its mode of locomotion. Related to tracked tanks widely used by armies, these crawlers move upon the same rotating wheel systems, but also have the ability to dig, pick and transport excavated materials as they proceed. Crawler excavators are widely used in construction work, such as digging trenches, holes and foundations, as well as for handling materials, moving earth, demolition, dredging, etc. It is multi-functional with many attachment can be installed such as breaker hammer,auger,wood ,grabber, ditcher et

Main Technical Parameters
Main Specification	Self Weight/ Operating Weight	5,550 kg/5,950 kg
	Bucket Capacity	0.23 m3
	Bucket Size (WxSxD)	730x750x560 mm
	Boom Length	3000 m
	Arm Length	1600 mm
Operating Range	Max. Digging Height	5760 mm
	Max.Dumping Height	4030 mm
	Max.Digging Depth	3820 mm
	Max. Vertical Digging Depth	2680 mm
	Max.Digging Radius	6155 mm
	Max.Digging Radius on Ground	6060 mm
	Min.Swing Radius	2205 mm
	Min.Tail Swing Radius	1655 mm
Hydraulic System	Main Working Pump	DOOSAN
	Multiple Control Valve	PARKER
	Swing Motor	DOOSAN
	Travel Motor	DOOSAN
Diesel Engine	Model	YANMAR, 4TNV94L
	Rated Power / Speed	36.2 kW/2100 rpm
	Displacement	3.054 L
	Type	4-cylinder,Direct-Injection Naturally-aspired, Water-cooled
Undercarriage	Track Shoe Width	400 mm
	Track Grounding Length	1990 mm
	Track Gauge	1480 mm
Overall Size	During Transportation	5855x1880x2560 mm

Optional AttachmentsAn excavator's design allows it to serve many versatile purposes. Hydraulic cylinders, booms, arms and attachments provide digging and holding functionalities, while a house-like cab provides the driver with controls to direct the excavator. A rotating platform and wheels provide the necessary mobility to lift and remove debris from the worksite.
Excavators use a variety of hydraulic attachments that serve different purposes. In addition to a bucket, other common attachments include an auger, breaker, clamp and quick coupler.
Main Features
Main Features of 6 Ton Crawler Excavator 1. Japanese TOP Brand YANMAR Diesel Engine as its standard Power
2. DOOSAN main working pump and Parker Control Valve as hydraulic system
3. Reinforced Digging Bucket
4. High-strength off-road Steel Track Shoe
5. Adjustable Bulldozer Blade
6. Top Quality Hydraulic Cylinder protected by with Black Cover
7. Curve-shaped Spacious Cab
Japanese TOP Brand YANMAR Diesel Engine as its Power
Our crawler excavator is driven by YANMAR ,36.2kW (49HP), Naturally-aspired , Water-cooled Diesel Engine. The YANMAR Diesel Engine is Japanese top brand engine , which is featured by High Reliability and Low Fuel Consumption .
DOOSAN main working pump and Parker Control Valve as hydraulic system
This excavator is equipped with DOOSAN main working pump and Parker Control Valve , which could ensure the digging and stretching action more smooth and stable.
Reinforced Digging Bucket
The total outer width of the bucket is 730 mm. Total volume is about 0.23 m3. There is a small hole at the bottom of bucket, which is used to let water leak out. Five pieces of teeth and two pieces of side scraper are connected by bolt with bucket and they are all made of wear-resistant steel.
High-strength off-road Steel Track Shoe
The total length of track shoe is 2535 mm, while the width of it is 400 mm. The track shoe is embedded with 5 pcs of track roller and 1 pcs of carrier roller at each side and is reinforced by high-strength side plate, which are more durable and wear-resistant, thus prolong its service life.
Adjustable Bulldozer Blade
The total length of the bulldozer blade is 1880 mm , while the height of it 350 mm. The maximum lifting height of the bulldozer blade is 360 mm, while the maximum digging depth of it is 420 mm. The lifting height and digging depth is adjustable, which is convenient for backfill operation.
Top Quality Hydraulic Cylinder protected by with Black Cover
The boom and arm are fitted with three pieces of top quality hydraulic cylinder protected by black cover, which ensure the stability of digging operation during harsh condition and prolong its service life as well.
Curve-shaped Spacious Cab
The curve-shaped cab is spacious and ergonomically designed.
Air-conditioner control panel are situated on left side of pilot control box.
There are two sets of hydraulic pilot control device situated on the sides of driver's seat, which control all the function of digging arm, boom and bucket. The backward and forward of machine are controlled by the two sets of lever in front of seat. All the maintenance and operation information could be shown on digital colored screen control panel.
Our luxurious seat is fitted with safety belt and shock-absorption cushion, which can ergonomically reduce fatigue from long time operation.
Why Choose Us
Our Is the leading enterprise specializing in sales and manufacturing of construction machinery and equipment in China. Through many years' development, , our company has grown to be group enterprise which covers an area of more than 200,000 square meters and owns over 600 employees and 5 production plants.
The main products we produce include Wheel Loader with payload from 1 Ton to 6 Ton, Backhoe Loader, Site Dumper, Crawler Excavator, and Forklift etc.
With excellent and advanced production equipment such as CNC machine, plasma and laser cutting machine, robot welding machine and automatic assembly production line, we have perfect quality supervision and inspection system, obtaining the National Special Equipment Manufacturing License and passing IS09001: 2008 International Quality System and European CE Product Certification.
We have been constantly improving and updating our products according to customer's feedback and market demand. At every stage of the manufacturing process, each component has passed the stringent tests before the assembled machinery goes through its final pre-despatch inspection. Excellent quality, efficient after-sales service and reasonable price make us gain customer's trust and good reputation in both domestic and overseas markets. Our products have been exported to Russia, Uzbekistan,Mongolia, Thailand,Indonesia, Middle East, Kenya, Uganda, Algeria and Poland etc.
To develop more customers, we would like to give the following preferable policies:
1. OEM/ODM orders and customer's design are welcomed.
2. No minimum order limit.
3. One-year Quality Warranty .
Let our many years of production experience and extraordinary service ensure that the goods you take out your pocket to buy is well worth.
