Hot Sale Livestock Steel Farm Silo Feed Mill Grain Wheat Maize Corn Storage Corrugated Steel Silo

Product Description

Product Description

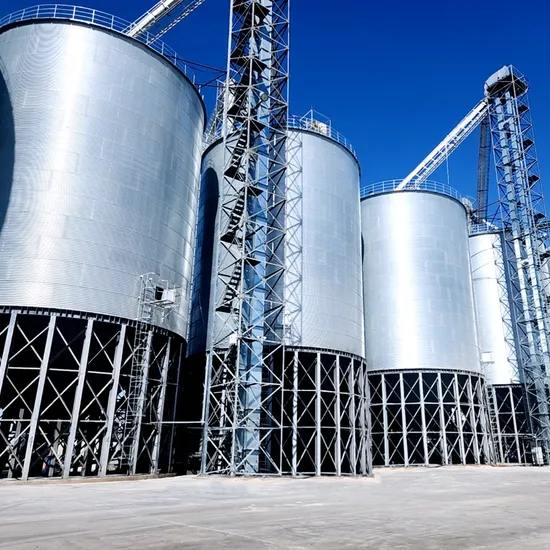

Grain steel silos, also known as rice storage silos or steel grain storage silos, used in farms, rice mills, flour mills, soybean oil factories, animal feed factories, breweries, etc., corn steel silos can be used to store grain (such as corn, bulk wheat, rice, rice, sorghum, soybeans, etc.), animal feed, grain seeds, plastic particles, wood particles, etc.
Types of silos
Structure and application of silos
The characteristics of assembled steel silo
Flat silo features
1. Large diameter, large warehouse capacity; Light weight, low foundation requirements, simple foundation construction.2. Fully mechanized entry and exit warehouse and intelligent management can be realized according to requirements.3. Equipped with sound ventilation, temperature measurement, humidity measurement and other safe grain storage systems.4. High degree of standardization: according to domestic high-quality materials or imported materials, standardized and serialized production is used to make standard parts and components with strong versatility.5. Simple and quick installation: all parts of the prefabricated galvanized steel warehouse are made in the factory and are connected by bolts on site; Construction is mobile and flexible. 6. Easy maintenance: This warehouse type is easy to disassemble and can be moved; Local plate damage can be replaced, thus extending the service life.
Cone bottom silo features
1. light weight , low requirements for the foundation , low cost .
2. easy assembly , short construction period .
3. according to user selection can achieve temperature measurement , ventilation , ventilation and other functions .
4. easy to realize mechanization and modern
5. simple demolition , convenient maintenance and reliable use .
6. long service life , generally up to 30 years or so .
Manufacturing capacity
Product specifications and parameters:
With many years of design and manufacturing experience, grain storage silos can be customized according to customer requirements.
Only a partial model of Xingu flat silo is listed below.

Silo type	Silo capacity (m³)	Cylinder height	Peak height	Wheat Capacity(T)
TCK11914	1859	15.735	18.515	1394
TCK12815	2310	16.855	19.845	1733
TCK13715	2660	16.855	20.065	1995
TCK14615	3040	16.855	20.275	2280
TCK15517	3875	19.095	22.725	2906
TCK16517	4360	19.095	22.945	3270
TCK17418	5140	20.215	24.275	3855
TCK18319	6100	21.335	26.625	4575
TCK19219	6749	21.335	26.885	5062
TCK20121	8152	23.575	29.125	6114
TCK21022	9241	24695	30.785	6931
TCK22021	9614	23.575	28.705	7211
TCK22921	10635	23.575	30.195	7976
TCK23822	12043	24.695	31.575	9032
TCK24722	13029	24.695	31.845	9772
TCK25623	14639	25.815	33.225	10979
TCK26523	15751	25.815	33.485	11813
TCK27523	16905	25.815	33.745	12679
TCK28423	18107	25.815	34.015	13580
TCK29323	19356	25.815	34.285	14517
TCK30223	20648	25.815	34.545	15486
TCK31122	21133	24.695	33.685	15850
TCK32024	24278	26.935	36.195	18209

remark : The above silo model is based on wheat density of 0.75T/m³.
Packing and shipping
The various parts of the silo and silo accessories are strictly classified and packaged in the factory to ensure that the goods are not squeezed and damaged during transportation. Some packaging items are also made according to customer requirements.
Please check out some packaging and shipping photos below for reference.
Exhibitions and customer visits
Enterprise qualification, patent and honor certificate
FAQ
1.Will you send engineers to install the plant?
Yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
2. Do you offer a warranty on your products?
Yes, for the products we can provide 1 years warranty time from the date of delivery.
3. What are your delivery times?
For regular products, it will take 30 days after receiving your advance payment. The exact delivery time depends on the goods and quantity you order.
3.How do you maintain a long-term good relationship with our business?
We will provide the most competitive price and quality to ensure our benefits to you;
No matter where you come from, we are all friends and family. We will do our best to help you.
