High Precision CNC Press Brake Machine, Da66t Metal Sheet Hydraulic Bending Machine

Product Description

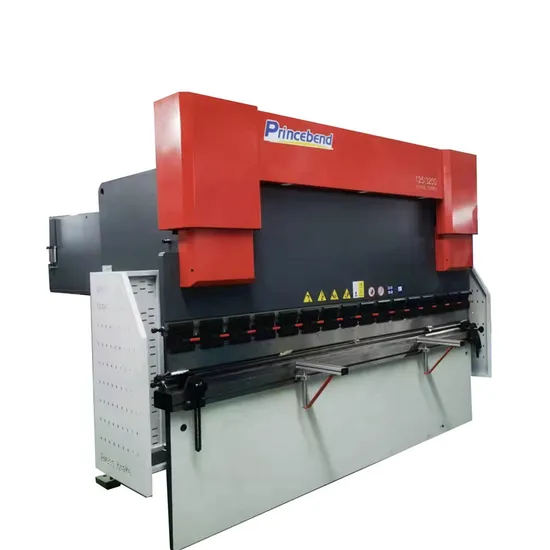

Hydraulic Press Brake Machine
1. Main Features: Totally EU streamlined design,Mono block by welding robots & aparatus and stress relief process by Annealing treatment.
2.Hydraulic synchronised positive stop design,and by Etsun NC programmable controller assuring accurate repeatability &ease of use.
3.Integrated hydraulic system(Bosch-Rexroth form Germany)allowing rapid approach switching automatically to slow bend.
4.Inverter with E22 Touch NC System operated back gauge with quality support fingers also with vertical adjustment
5.Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays.
6.Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety.
2. Standard Equipment:
Estun E22 TouchNC control System
Powered Depth Y-axis&Back gaugeX-axis
DELTA Inverter controlled back gauge
HIWIN Ball screws & Polished rod with 0,05mm accuracy.
Plate Support Arms
Germany Bosch-Rexroth Hydraulic
Germany EMB Tubing connector
Germany Siemens Main Motor
Hydraulic &Electrical overload protection
Top and Bottom Tooling(86°,R0.6mm)
Safety Standards(2006/42/EC):
3. Safety Equipment:
1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009
Front finger Protection(Safety light curtain)
South Korea Kacon Foot Switch(Level 4 of safety)
Back metal safe fence with CE standards
Safety relay with Monitor the pedal switch and safety protection
Our Services (1) 36 months quality guaranty
(2) free lifetime maintenance
(3) free training course in our factory.
(4) 18 hours on line service each day
(5) Strict quality control,3 times of testing
(6) engineers avaiable to go abroad
FAQ Price : Give me reply, i will give you my favorable price immediately !
Payment term : 30% deposit and the balance paid against copy of B/L in 3 days .
Package : Standard exporting package .
Operation manual and video disc :
When delivery machine, the related operation instruction of model will delivery together with machine. And in the instruction, there is teaching video disc .
After-sales service :
1.machine is simple, generally, user can understand how to operate. There is operation instruction and disc .
2.welcome to our factory to learn how to operate our machine, we will give good training .
3.our engineer is available for user. If there is requirement, our engineer can go to user factory, and adjust machine, give good training to user .
