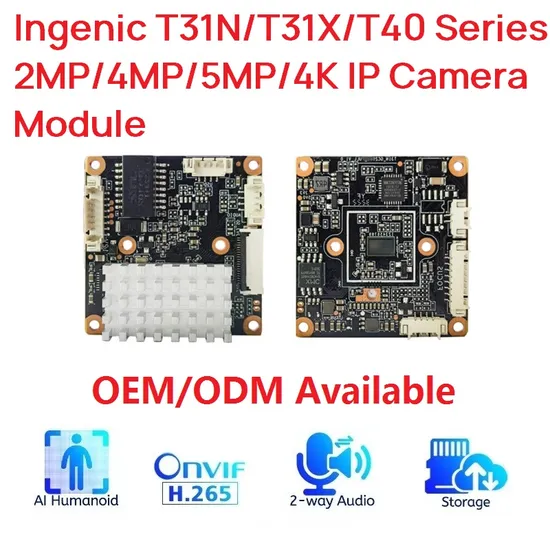

Camsight Original Ingenic 8MP 4K 5MP 4MP 3MP 2MP CCTV IP Camera Module PCB Board Sony WDR Module IP Camera Supplier OEM Hikvision Dahua
| US$4.10-14.20 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CT-N8P12
Type
IP Camera
Sensor
CMOS
HDMI Format
2MP/4MP/5MP/8MP Resolution
Kind
IP Camera Module
Certification
CE, FCC, CCC, RoHS, EMI/EMC, ISO9001: 2000
Feature
Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC
Effective Distance
30-50m
Resolution
3840X2160
Video Compression
S265/H.265/H.264
Human Detection
Support
Poe
Support
SD Card Slot
Max Support 512g
Inner Mic
Support
Speaker
Support
Io Board
Support
Full Color/Dual Lights
Support
Onvif
Support
Rtsp
Support
Rtmp
Support
Motorized Lens
Support
Transport Package
Carton
Specification
38x38mm
Trademark
Camsight
Origin
Made in China
HS Code
8525891900
Production Capacity
2000000PCS/Year
Product Description
H.265+ Ingenic 2MP/4MP/5MP/8MP Smart Human Detection 38*38 IP Camera Module-Built-in Human Detection algorithm;
-H.265+ compression format, save bandwidth and storage space;
-Support Smart IR to avoid Infrared over-exposure at night;
-Support ICR auto switch, achieve best result for D&N video;
-Support TF card slot(512G) for local storage(optional)
-Support IO Board 1CH alarm input and 1CH alarm output(optional)
-Support 3D DNR and digital WDR;
-Support auto-electronic shuttle to suit different surveillance environment
-Support two-way audio intercom and P2P
Specification
| Sensor | 1/2.9" Low Illumination CMOS Sensor |
| Lens | Fixed or Motorized Lens |
| D&N | ICR Switch, Auto/Color/B&W/CDS Trigger |
| D-WDR | WDR (off/low/middle/high) |
| IR Led Control | Auto/Manual/Off |
| 3D DNR | Off/Low/Middle/High/Higher |
| Defog | Off/Low/Middle/High |
| Mirror | Off/ Horizontal Mirror/Vertical Mirror/180-degree flip |
| Image Setting | Brightness,Contrast,Sharpness,Saturation,Chroma |
| Humanoid Detection | |
| Detection Quantity | ≤5 people humanoid |
| Humanoid Size | Humanoid Pixel ≥40*40 |
| Detection Ratio | ≥99%(meet above requirement) |
| Max Detection Frame | 5fps/s |
| Fault Detection Ratio | ≤2% |
| Detection Part | People with any posture including half body, head, hand, shoulder |
| Detection Mode | Support static and dynamic humanoid detection |
| Detection method | Image detection during day time or night time with lights or IR LEDs |
| Detection Area | Appointed area, default full-screen |
| Upload Method | Upload it under private protocol |
| Trigger Method | Video trigger |
| Audio & Video Encoding | |
| Video Encode | Smart H.265+/H.265/H.264 |
| Encoding Feature | Main stream: 8MP/5MP/4MP/2MP Sub-stream: D1(720*576), VGA (640*360) |
| Max resolution | 8MP |
| Video Code Rate | Fixed code rate, variable code rate (Main stream: 160Kbps-4000kbps) |
| Video Type | Composited stream/video stream |
| Audio Standard | G.711u 64Kbps |
| Network Function | |
| Protocol | TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, DDNS, NTP, PPPOE, UPNP, SMTP |
| Security Mode | Authorized user name and password, HTTPS encryption, AES connecting encryption, RTSP verification |
| Motion Detection | Set detection area, can set multi-level sensitivity |
| Privacy Mask Alarm | Support 1 area |
| Privacy Mask | Support 4 areas |
| Schedule Linkage | Snapshot, email |
| Device abnormal Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm |
| OSD | Title, time and date overlay, multi-line, and color of characters optional |
| Port | |
| Network Port | RJ45 10M/100M network self-adaptation |
| Audio | MIC Input/ Output |
| IO Port | TF card, 1 input and 1 output alarm, reset optional |
| USB Port | Support USB WIFI/4G module to connect |
Honors
FAQ
Q: Do you support OEM?
A: Of course,we are professional OEM/ODM manufacturer.
We support customized logo print on porducts,package,and software GUI
Q: How is the delivery time?
A: For sample order need 3-5days, for mass order time can be negotiate.
Q: How can we be your distributor?
A: According to different area, product models and quantity to evaluate. Kindly contact us for detail negotiation.
Q: What about your Warranty?
A: 2 Years
Q: Do you have any MOQ limit?
A:Sample order is no limit, but for bulk order once you need customized logo print or customized package then it will have MOQ limit.
