5 - 10mm New Tube Making Advanced Paper Cone Machine

Product Description

Product Description:

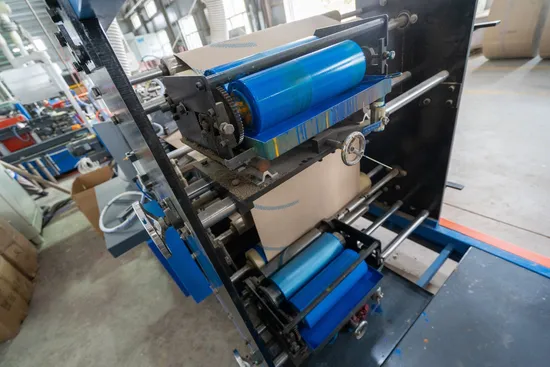

1.Production Process This machine is a fully automatic paper cone production line for textile industry. It is controlled by PLC. It consists of paper cone winding unit, paper cone Printing Unit , drying oven, and paper cone finishing unit. Paper cone finishing machine is new type easy to operate, less mechanical parts, total production line can produce 74880 to 83520ps/24hour , The whole paper cone production process is as follows.(the flocking part not including into the offer ,its optional ) 2.Technical Parameters:

Power	Automatic Paper Cone Winding Machine	13.6KW
	Dryer	Coal heating: 0.75KW Electric heating: 29.7kw
	Paper Cone Finishing Machine	8KW
	Flocking (Optional)	8kw
Paper Waste Rate	24% for TSPC800	14% for TS2019-T
Laber	2 person /shift

3.Supply Ability:
TSPC800:The maximum design speed is 58 pcs/min, and normal operation is around 50-53 pcs/min
TS2019-T:The maximum design speed is 98 pcs/min, and normal operation is around 85-95 pcs/min
Company Introduction:
Shaoxing Tianshi Paper Product Co., Ltd was established in 2000, which was specializes in the research, development, and production of paper cone and automatic paper cone making machine for textile.We adhere to the corporate philosophy of quality, technology, innovation, and integrity. After more than twenty years of development, the company are equipped with advanced production equipment, ultra-high technical strength, and a complete after-sales service system. The automatic paper cone making machine has advanced quality within international and domestic market, and won dozens of invention patents and utility model patents,promoting the technological breakthroughs and extionsion of applications. Tianshi paper cone and making machine are exported to overseas countries such as Central Asia, East Asia, Africa, the Americas, and Europe. Brands in the industry are highly recognized and praised by customers.
Packing:

Model	TSPC800
Dimension	Automatic paper cone winding machine	2100*7250*1600mm
	Hot Dryer	8260*1100*3000mm
	Finishing ( Noshing , roughing ) machine	2300*2100*1420mm
	Total set dimension	8000*13400mm
Weight	9 Ton
Container Need	1*20GP and 1*40GP
Package	By container

Terms and Conditions:
(1)Payment Terms: 30% Advance with order , Balance 70% Before Shipping
(2)Delivery Time: 45 working days for one set.
After-Sales Service: We will send our engineer to your factory to install machine and training your worker , Machine guaranty 12 month ,you need to pay air tickets, visa fees , hotel and food for our engineer.After 12 month you need to pay spare parts charge, air component parts , and electronics switch and sensor we cannot give any guaranty . Before our engineers will come to Install machine Please arrange material, Paper Rolls , Glue , Printing ink , Printing Block and 1 Operator and 2 Helper for Testing machine and learn how to run machines. Customers and Exhibition:

New Invention and Creation:
Mechanical automation will tend towards intelligence and weaken the influence of human factors. With the rapid development of science and technology, the mechanical design and manufacturing industry will fully utilize the advantages of science and technology, establish and improve the manufacturing structure system, make the mechanical production process more systematic and standardized, and improve the efficiency of mechanical automation production. The mechanical design and manufacturing industry develops targeted computer programs through advanced scientific and electronic information technology, closely linking computer programs with mechanical production automation, intelligently controlling mechanical production, and improving the production efficiency and quality of mechanical automation.
