Farm Equipment Hydraulic Tillage Opposed Heavy-Duty 24 Disc Harrow
| US$1,800.00-2,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
1BZ-2.5
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Hanging
Drive Type
Tractor Driven
Certification
CE
Color
Red
Transport Package
Iron Box
Specification
20 discs harrow
Trademark
myagro
Origin
Dezhou
HS Code
84321000
Production Capacity
2000 Units Per Year
Product Description

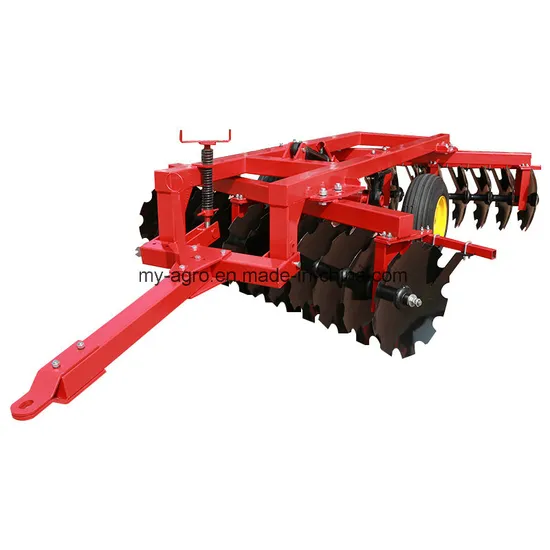

Product DescriptionHeavy Duty Hydraulic Off Set Disc Harrow With Tire
The machine is suitable for cleaning crop residues before tillage on the virgin land and heavy clay soil and crushing clods after tillage. On the cultivated land, it can be used as the plough for the initial cultivation, however on the uncultivated land , the first harrowing depth can be up to 180mm. After harrowing, the land surface is smooth , the soil clods and crop residues are well crushed. It is easy to be mounted and adjusted, free to reverse , and convenient for transportation.
Main Specifications:
| Model | unit | 1BZ-1.8 | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 | 1BZ-4.0 |
| Working width | m | 1.8 | 2.2 | 2.5 | 3.0 | 3.4 | 4.0 |
| Working depth | mm | 180~200 | 180~200 | 180~200 | 180~200 | 180~200 | 180~200 |
| Q'ty of disc | 16 | 20 | 24 | 28 | 32 | 36 | |
| Disc diameter | mm | 660 | 660 | 660 | 660 | 660 | 660 |
| Total weight | kg | 1100 | 1250 | 1350 | 1450 | 1550 | 1700 |
| Matched power | hp | ≥70 | ≥80 | 80~100 | 100~120 | 120~150 | 140~160 |
| Linkage | Trailed | ||||||
