Automatic Strip Cutter & Block Cutter for Waste Tyre Recycling

Product Description

Full-Automatic Waste Tire Cutting Machine / Strip Cutting Machine / Waste Tire Block Cutting Machine


1. Automatic Tire Cutting Machine

1.Type	TP-600
2.Strip cutter reducer model	350
3.Total motor power	11+3 +30 +1.5 Kw
4.Output conveying device ( L*W)	0.6m*4m
5. Conveyor belt materials	Rubber & Nylon
6. Drums number & size	16 Inches 20 Inches 22.5 Inches
7.Overall size(L*W*H)	Strip cutter: 1800*1250*1600mm Block cutter: 1150*1250*1420mm
8.Weight	Around 3000kgs.

2.Strip Cutter (Manual Type & Automatic Type) :

Applications: It is used in cutting the used tire and side wall of waste tire into rubber strip.
Features: The materials of disc knife is a special metal heat treatment, so the knife is high hard, wearable and durable.

Main Technical Spec.:

1. Production capacity	2000Kg/H
2. Motor power	7.5KW
3. Motor rotating speed	1440R/Min
4. Speed reducer model	350
5. Speed ratio	31.5
6. Size of discharged materials	20-40MM
7. Machine weight	720Kg
8. Overall dimension	1300*750*1500mm

Block Cutter (Manual Type & Automatic Type)

Application: It is used together with strip cutter to cut long rubber strip into rubber lump of 20-40mm.
Characteristic: the cutter materials are excellent hard alloy steel, high hard and wearable.
Main Technical Spec.:

1. Production capacity	1000Kgs/H
2. Motor power	18.5KW or 22KW
3. Motor rotating speed	1440R/Min
4. Size of discharged materials	20-40mm
5. Machine weight	750Kgs
6. Overall dimension	850*850*1250mm

Now in China,they are the most popular two-piece outfit for cutting tires, good quality,competitive price and large capacity are its greatest strength. If any needs of them,please don't hesitate to contact me for further cooperation.

Besides, Except the tire bead ring cutter, we also can supply tyre shredder, rubber crusher, cracker mill, dynamic devulcanizer, rubber refiner... etc. We can provide the whole set production lines equipments for reclaimed rubber production.

We welcome you to visit us in future.

3.Contact Informations:

Contact Person: Mr.Mark Zhang ( Deputy general manager)






Pls feel free to contact me for any question , I also can provide the machine running vidios.

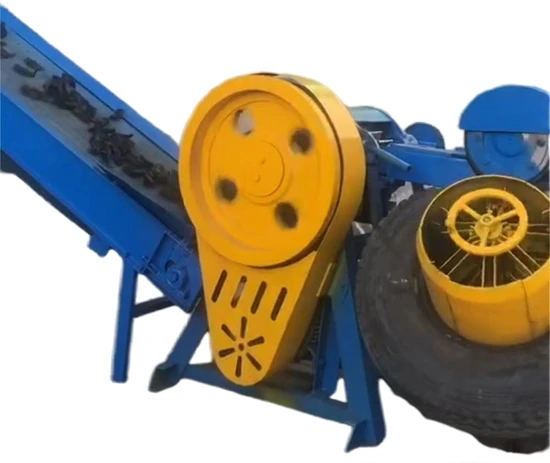

4.Reference Pictures:
