Z3050X16 Radial Drilling Machine Drill Machine Drilling

Product Description

Z3050 Radial Drilling Machine Drill Machine drilling
Useful
Z3050 Radial drilling machine is suitable for drilling, counter, reaming, spot facing and tapping thread on surface of medium and large metal parts. the handle, button and other operating parts of Z3050X16 Radial drilling to achieve the main function concentrated in the spindle box panel.
The rocker arm drives the outer column to rotate ±180° around the inner column; Rocker arm lifting along the outer column ;The spindle box moves left and right along the rocker arm guide rail.
Configuration features(Z3050 Radial drilling machine )
Hydraulic clamping; Hydraulic change speed;Hydraulic pre-selection;
Electrical machinery double insurance;
Spindle rotation forward/reverse, stop (brake), change speed, neutral gear and other five actions are controlled by a handle, centralized operation, light and dexterous.
1. Hydraulic speed changing, Hydraulic column clamping.
2. Oversize base plate, ideal for processing of large workpieces .
3. Torsion-free, polished column promotes sliding capacity of radial arm .
4. Radial arm and drill head feature independent hydraulic clamp .
5. Lifting motor allows for easy height adjustment of radial arm .
6. Ideal for drilling, countersinking, reaming and tapping .
7. Hardened, polished gears in oil bath.
8. Polished surface ensures for smooth movement of drill head on radial arm .
9. Heavy Duty Precision manufactured radial arm drilling machines .
10. Hydraulic column & head clamp ensures fixed tool positioning .
11. Oil-bath lubricated gearbox with hardened & ground gears .
12. 16 speed auto down-feed: 0.04 ~ 3.2 (mm/rev) .
13. Unique hydraulic operated feed & spindle drive system .
14. Arm height adjusted via vertical leadscrew & heavy duty induction motor.
15. High quality fine grain cast iron with ribbing ensures extremely low vibration .
16. Coolant pump system with flexible hose .
17. Work light mounted underneath arm providing direct light on work piece .
SPECIFICATIONS Z5050 Radial drilling machine

unit	SPECIFICATIONS	Z3050X16	Z3050X20
(mm)	Max. drilling dia(mm)	50	50
(mm)	Distance from spindle nose to table surface(mm)	320-1220	320-1220
(mm)	Spindle center to column generating distance(mm)	370-1620	350-2020
(mm)	Spindle travel (mm)	315	315
()	Spindle Cone	5	5
(r.p.m)	Range of spindle speeds(r.p.m)	25-2000	25-2000
	Spindle speed series	16	16
(r.p.m)	Spinde feeding range(r.p.m)	0.04-3.2	0.04-3.2
	Spinde feeding step	16	16
(° )	Rocker rotary angle	±180°	±180°
(kw)	Main motor power (kw)	4	4
(kw)	Movements motor power(kw)	1.5	1.5
(kg)	Machine weight	3500	3900
(mm)	Overall dimensions(mm)	2500x1060x2800	2900x1060x2800

Z5050 Radial drilling machine Option:

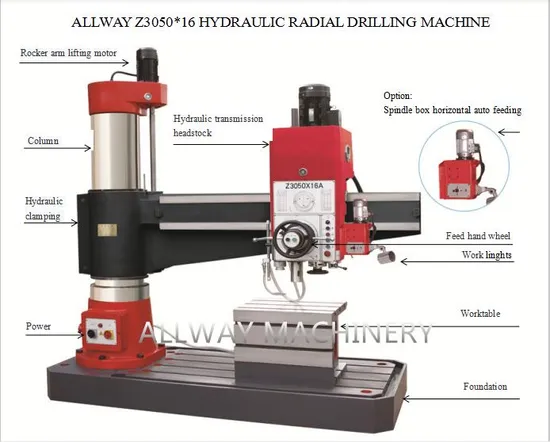

1)spindle box horizontal auto feeding like above right PIC.(with option, it's name is Z3050*16A) ;
2)spindle protection;
3)Siemens electrical Components (excluding motor);
Z5050 Radial drilling machine Packing dimensions: 1 unit/case: 2560*1100*2530MM GW:3800KG
Delivery time :around 20 days
1)DELIVERY TIME: 20 DAYS AFTER RECEIVING DEPOSIT
2)PACKING: IN PLY WOODEN CASE OR STEEL PALLET
3)INSURANCE: ALL RISKS BY BUYER
4)PAYMENT: T/T IN ADVANCE, BALANCE BEFORE SHIPMENT
5)SHIPMENT: BY SHIP
6)GOODS ARE ORGIN OF CHINA.
Always creating value for customers. Not only selling to you, but the helping you to get the right ones.
