Conveyor Beltinfrared Digital for Coal Online Moisture Analyzer Sensor Meter Analyser

Product Description

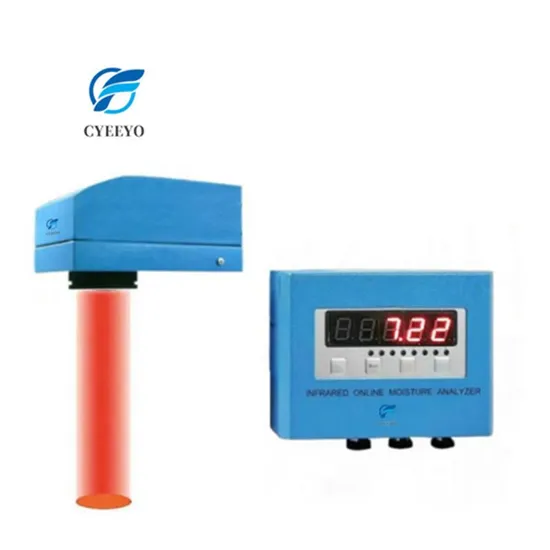

Infrared Digital for Coal Online Moisture Analyzer Sensor Meter Analyser
TECHNICAL SPECIFICATIONS Measurement range: 0-50% (the maximum measurement range is when the material is saturated with water) Static accuracy: ±0.1% Measurement accuracy: ±0.2% (change in material composition will cause measurement error) Measurement channels: 50 Height range: 250mm±100mm Operating temperature: 0-50ºC Operating humidity: 5-90% Repeatability: 0.1% Response time: 0-60 seconds Filter range: 0-2.5% Power supply: AC 110-240V 50Hz/60Hz Power consumption: 150W Light interference: not affected by changes in external light and no need for a hood over the probe Temperature influence: With automatic temperature offset function, it is basically not affected by changes in external temperature. The probe should be installed in an easily accessible place. First, it should be easy to sample under the probe and easy to maintain (such as wiping windows, cleaning surfaces, etc.); (1) The machine should be installed in a safe position for measuring where the material to gauge will not have direct contact with the probe; (2) probe installation height and direction: (see Figure 2.1) The probe is to be installed over a certain material that is not fragmented as on a conveyor belt or a vibrating conveyor. Note that the material must at least demonstrate a thickness of 10mm (recommended 15mm above) in order to completely ignore the conveyor belt as a source of possible confusing effect in the background. (3) In order to allow for a longer period of time for the material to reach a state of balance before taking measurements, the probe of the dryer or other equipment for adjustment is preferably installed as far as it can be from the steam outlet; (4) It is a basic requirement for the production line to ensure that the material to measure embraces a certain degree of consistency and continuity in the production process; (5) The consistency of the material has a great influence on the measurement accuracy compared with the oven drying method, especially on the latter's double-sampling deviation.

Weight about 18kgs
