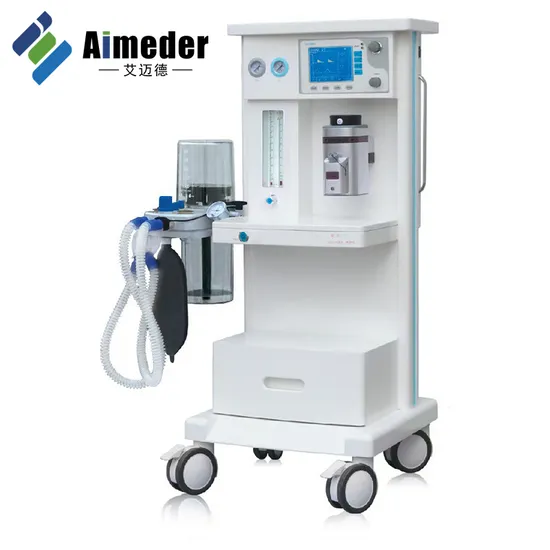

Professional Surgery Clinic Hospital Medical ICU Anaesthesia Veterinary Anesthesia Machine Price

Product Description

Product DescriptionFeatures
1. The high-precision Vaporizer is designed with a stable concentration output, automatic compensation for pressure, temperature and flow rate. And it is available to choose one kind of gas from Halothane,Enflurane, Isoflurane, and Sevoflurane, ensuring a successful anesthesia operation. 2. Reliable pneumatic transmission system. 3. Economic and proper configuration of technologies, optional as required by the Customer. 4. Modularized design and upgrading. Upgrading is available as required by the Customer.
Specifications

Anesthesia Machine
Main body	High-strength engineering plastic rack, light, beautiful and corrosion resistant
Scope of application	adult, child
Gas source	O2, N2O: 0.27~0.55MPa
Flow meter	O2: 0.1~1.0L/min 1.1~10L/min
Flow rate of rapid oxygen supply	25~75L/min
Low oxygen pressure alarm	There will be sound alarm when the oxygen pressure < 0.2MPa
Vaporizer	it has the function of automatic compensation based on pressure,temperature,and flow rate. The regulation range of evaporator concentration is 0~5 vol%. Among Halothane,Enflurane,Isoflurane and Sevoflurane,one can be chosen for application as required by the customer.
Respiratory circuit	working mode: all-close, semi-close, semi-open releasing pressure: 0.5~7 kPa
Respiratory bellows	bellows for adults, bellows for children tidal volume range:0~1500 ml
Part of Ventilator
Display mode	High-definition LCD screen display
Ventilation mode	IPPV, MANUAL (Manual monitoring of tidal volume, ventilation volume, respiratory rate)
Ventilation parameters	Tidal volume 50~1500ml; Rate 4~80 bpm; I:E 2:1~1:4; Pressure range 1.0~6.0 kPa
Parameters for ventilation monitoring	tidal volume, ventilation volume, IPPV rate, I/E, peak pressure of airway, inspiratory trigger pressure, pressure - time waveform
Security Alarm System
Airway pressure alarm	upper limit setting range 1.0~6.0 kPa low limit setting range 0.4~2.0 kPa
TV alarm	upper limit setting range 0.5~2.0L low limit setting range 0.02~1.0L
Sustained high-pressure alarm	it will give alarm when stress have consistently been higher than 2.5 kPa
Suffocation alarm	it will give sound and light alarm if there is no tidal volume input in 15s
Power alarm
Power	AC 220V±10% 50Hz±1Hz

Related ProductsThe company's main products include: more than 200 specifications of products such as surgical shadowless lamp series, electric operating table series, medical hanging tower bridge series, medical hospital bed series, medical vehicle and stainless steel series.Company ProfileShandong Aimeder Medical Technology Co., Ltd. has nearly 30 employees, including the research and development department, production department, sales department, foreign trade department, quality inspection department, after-sales department, etc. The company has a group of experienced R & D personnel who have been engaged in professional technology for many years, as well as advanced equipment such as production processing and testing. And it has a superb, complete and proficient production process from machining, stamping, welding, plastic spraying, assembly to inspection, and has relatively advanced processing and manufacturing capabilities in China.
CertificationsAll products sold by Aimeder have passed ISO9001 quality management system, ISO13485 medical device quality management system, ISO14001 environmental management system, ISO45001 occupational health and safety system certification, CE safety certification and other qualification honor certificates.
Packaging & ShippingFAQQ1:Are you a Manufacturer or Trader ?
A1:We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service.
Q2:Do you provide OEM/ODM Service ?
A2:Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets
Q3:Do you have CE certificate ?
A3:Yes, most of our products have the CE certificate.
Q4:What is your payment term ?
A4:We accept T/T, L/C at sight, Western Union, Paypal etc.
Q5:What is your delivery time ?
A5:We have sufficient stock of conventional models and will ship within 1 week after placing order.
