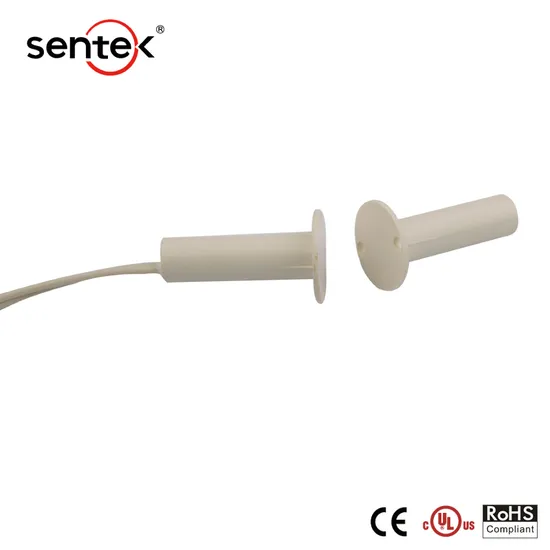

Flanged Recessed Door Window Sensor Magnetic Contacts
| US$0.65-1.20 | 1,000 Pieces (MOQ) |
Basic Info.
Model NO.
BR-1019
Usage
Door, Window, Auto
Certification
CE, ISO, RoHS, UL
Maximum Switching Voltage
100
Maximum Switching Current
0.5
Color
White, Brown, Grey
Reed Form
N/O,N/C,Spdt
Loop Type
Closed,Open, Closed&Open
Transport Package
Box
Specification
Plastic
Trademark
Sentek
Origin
Ningbo China
HS Code
8531901000
Production Capacity
200000/Month
Product Description
Order Information:
| Part Number | Loop Type | Reed Form | Closed Gap (Inch (mm)) | Maximum Initial Contact Resistance (Ohm) | Maximum Contact Rating (W) | Maximum Switching Voltage (VDC/VAC) | Maximum Switching Current (A) |
| BR-1019 | Closed | N/O | 3/4 (19) | 0.150 | 10 | 100 | 0.5 |
| BR-1019WG | Closed | N/O | 1 (25) | 0.150 | 10 | 100 | 0.5 |
| BR-1019A | Open | N/C | 3/4 (19) | 0.150 | 3 | 30 | 0.2 |
| BR-1019C | Closed & Open | SPDT | 3/4 (19) | 0.150 | 3 | 30 | 0.2 |
Dimension (mm):
Product Features:
* Flanged recessed switch
* 3/8" diameter press to fit
* Standard 18" #22AWG leads
* Special wire available
* Swith and Magnet available seperately
* Resistor, Diode and Supervisory Loop available on request
* Colors: White, Brown, Grey
