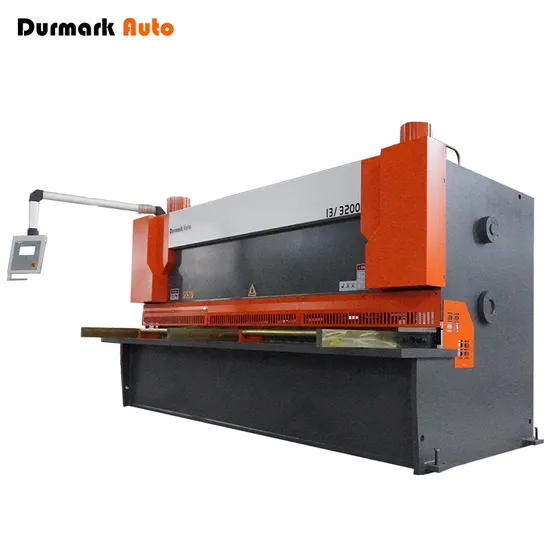

Electric Sheet Metal Hydraulic Shear and E21s Plate Shear Machine, CNC Shearing Machine Price

Product Description

electric sheet metal hydraulic metal shear and E21S plate shear machine, cnc hydraulic shearing machine price
Main feature
1. Steel welded structure, stress elimination by vibration, high mechanical strength, and exceptional rigidity
2. The hydraulic drive type structure, the cutter saddle circles a fixed axis for circle moving.
3. Decrease the force of fulcrum through leverage to prolong working life
4. Nitrogen cylinder return, simplifying the hydraulic system to make running more stable.
5. with fast and flexible gap adjusting mechanism for high shearing accuracy
6. Equipped with Lighting Alignment Device for easy shearing
7. Back Gauge size and shearing times controlled by CNC system, back gauge with high precision ball screw, stable operation and precise positioning.
8. The CNC system adopts frequency conversion control technology, with multi-step programming function, simple and easy to operate.
9. Safety barrier device all around the machinery, electrical cabinets equipped with Open door cut-off function, emergency stop button around front and back, protective cover foot switch to ensure safe working.
Technical parameter

NO	Item	Value	Unit
1	Max cutting thickness	8	mm
2	Max cutting width	3200	mm
3	Plate strength	450	N/mm2
4	Shearing angle	1º30'	degree
5	Back-guage max distance	500	mm
6	Stroke time	14	time/min
7	Distance between columns	3420	mm
8	Blade length	3300	mm
9	Worktable height	810	mm
10	Main mptor power	7.5	kw
11	Dimension	3690*1750*1680	mm
