High Frequency Wacker Type Electric Concrete Vibrator High-End Products Concrete Vibrator

Product Description

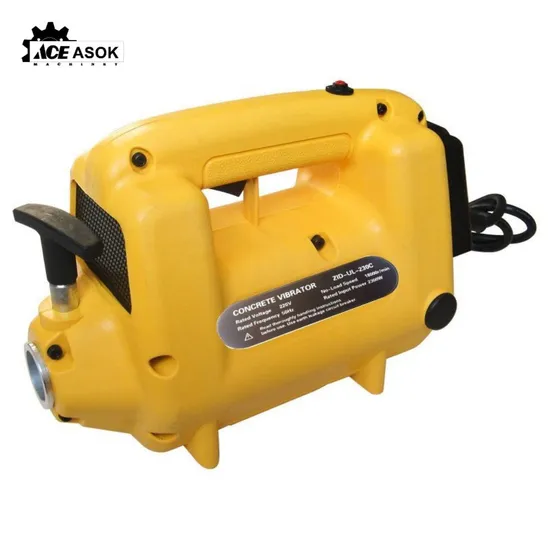

(ZID-230C) Mini High-Frequency Concrete Vibrator
High frequency concrete vibrator is suitable to the commodity concrete, widely applies to the bridge, the harbor construction, the large-scale dam, the water wheel power plant, the high level building base pours into post picket,crowded reinforcing stell bar net coagulation dirt wall and major and medium small architectural engineering. It has the density well, the air bubble few and repel seep the nature is strong and so on the merit, is guaranteed and improves the concrete construction quality the important tool.

Product Description

1.The ZID Series high frequency concrete vibrator is an immersion type vibrator. During operation,the vibrating poker that is attached to the vibrator has to be immersed into the concrete .The poker has an eccentric vibrating element inside it .
2. The vibrator incorporates off-centered weights into the 18000rpm electric motor to generate high frequency vibration . Via the flexible tube,the vibrator transmits the vibration to the poker via the flexible tube .It is spun as much as 12000 times per minute,which makes it easy to cause resonance with the poured concrete .
3. The lightweight vibrator only weights to 5.2kgs to 6kgs,giving ease of operation .It is one of the most widely used products,know for its low noise,energy efficiency, reliable functioning,high safety,and good vibrating performance.
Specification Date

Type	Wacker type	Europe type	Frame type
Model	ZID-230C	ZID-230	ZID-200
Rated Voltage	220V	220V	220V
Rated Power	2300W	2300W	2000W
No-load speed	18000r/min
Weight	6kgs	5.5kgs	6.35kgs
Packing size	31X22X26CM	34X21X26CM	46X23X22CM
Packing way	Carton	Carton	Carton

Match concrete vibrator shaft:

Item	High-frequency vibrator shaft
Model	¢(mm)	ZX-35	ZX-45	ZX-50
Diameter of head	¢(mm)	35	45	50
Length of head	L (mm)	330	390	410
Vibrating Frequency	(HZ)	200	200	200
Vibrating Ampitude	(mm)	0.91	1.2	1.3
Diameter of flexiable hose	D(mm)	30	30	30
Diameter of flexiable shaft	D(mm)	10	10	10
packing size	cm	75*75*5.5cm

Match vibrator shaft:

Packing:

Factory

SAMPLE ROOM
