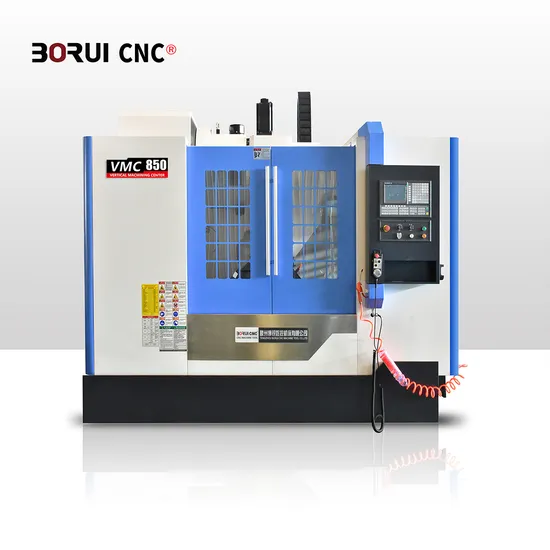

New 4 Axis CNC Milling Machine Vmc 850 Vertical CNC Milling Machine Price
| US$14,000.00-19,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VMC 850
Movement Method
Point to Point Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Machine Type
Vertical Machine Centers
Product Name
3-Axis Vertical CNC Machining Center
Controlling Mode
CNC
Processing
Maching Center
Spindle Speed
8000rpm
Control System
Siemens GSK Fanuc (Optional)
Table Size
1000*500mm
Max. Table Load
400kg
Tool Changer Type
Disc Type
Atc
16
Transport Package
Plywood Case Overall Dimension
Specification
2780*2450*2700mm
Trademark
BORUI
Origin
Shandong China
HS Code
8457101000
Production Capacity
500/Year
Product Description
New 4 Axis CNC Milling Machine VMC 850 Vertical CNC Milling Machine PriceProduct Description
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining . It can also finish many working procedures like milling, drilling, tapping, boring etc.
CNC Milling Machine Feature:
* High quality resin sand , ensure machine driven stability
* Separated electronic handwheel
* External 232 interface
* Taiwan high precision and speed spindle
* Taiwan armless type ATC with 16 tools
* Coolant system with high flow and high head pump, ensure sufficient cooling at high speed running
* Totally enclosed, safety and beautiful
Product main technical parameters:
| CNC machining machines for sale message center | VMC850 |
| Capacity | |
| table size | 1050X500mm |
| Max. table load | 600kg |
| T slot qty-width*distance | 5x18x90 |
| Spindle | |
| spindle speed | 8000 r p m |
| spindle nose to table surface | 105-655mm |
| Spindle center to Column surface | 628mm |
| Spindle taper | BT40 |
| Main motor power | 7.5/11kw |
| Three-axis servo motor power | 2.0/2.0/2.0kw |
| Box way | |
| X axis travel | 800mm |
| Y axis travel | 500mm |
| Z axis travel | 550mm |
| X/Y/Z axis rapid feed | 24/24/20m/min |
| Cutting feed speed | 10m/min |
| Automatic tool changer | |
| Tool changer type Tools capacity | drum/ hat type (arm type optional ) 16/16 |
| Max. tool length | 250/350mm |
| Max. Tool diameter | φ100(adjacent tool)/φ150(not adjacent tool) |
| Max.tool(kinfe) weight | 8kg |
| Tool changing time(tool-to-tool) | 1.8sec |
| Accuracy | |
| Positioning accuracy | ±0.005/300 |
| Repeat positioning accuracy | ±0.004/ |
| Net Weight | 4500 kg |
| Overall Dimension | 2780X2450X2700 |
Standard : Optional :
* Siemens 808D controller * FANUC, SIEMENS828D, GSK , KND
* BT40 Armless type ATC with 16 tools * Arm type ATC
* Taiwan spindle, screw and locking nut, linear, cylinder . * 4th axis
* Japan NSK bearing * Automatic chip convey
* Germany R+W coupling
* Automatic lubrication system
* Cool-heat exchanger
* Tri-color alarm lamp
* Full splash guard* spindle taper hole cleaning system* cooling system
